Mitsubishi Electric 9kW Split System Air Conditioner MSZAS90VGDKIT
Mitsubishi Electric 9kW Split System Air Conditioner MSZAS90VGDKIT
Mitsubishi Electric | Model: MSZ-AS90VGD / MUZ-AS90VGD
The MSZ-AP Series is engineered for high performance and lower operating noise levels. It also features a streamlined design to blend in with the decor.

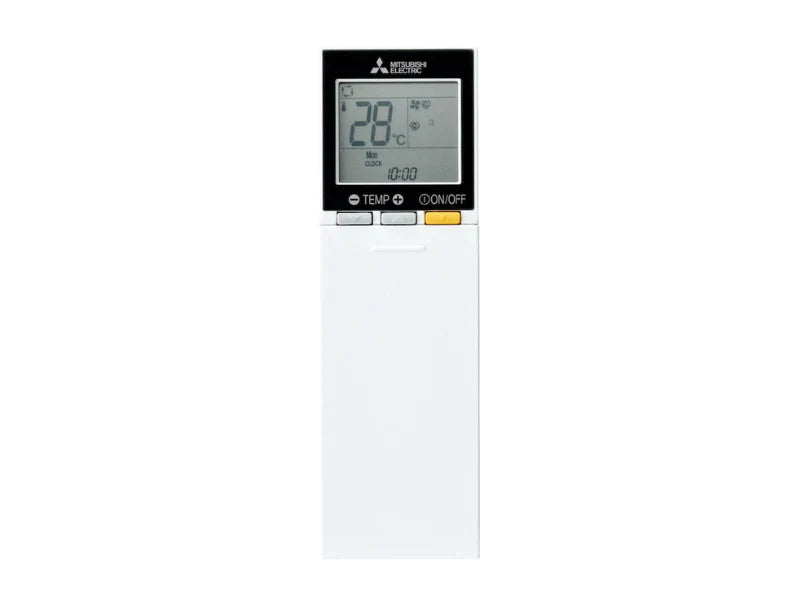

This kit comes standard with a wireless controller.
Couldn't load pickup availability
Stock Availabilty Information
Stock Availabilty Information
We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.
When you place your order it may be in our warehouse or we may need to source it from our suppliers.
Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.
If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.
-
Small enough to fit above doorways
With a 16.4 percent reduction in height and a 5 percent reduction in width compared to the AP-22-50 models, they can be installed in smaller spaces, previously not achievable; such as over doorways.
-
Dual Barrier Coating
Dual Barrier Coating reduces dust and greasy dirt from collecting on the surfaces of the air conditioner, and airborne contaminants sticking to the unit. Providing an air conditioner that is not only cleaner but also requires less cleaning.
-
Intelligent Eye
Night Mode reduces the brightness of the operation indicator light, disables beep noises, and limits the noise level of the outdoor unit.
-
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
-
Blue fin condenser
Anti-corrosion treatment has been applied to the heat exchanger of the outdoor unit. This coating slows the corrosion process of the aluminium fins.
-
I-Save Mode
The “i-save” Mode is a simplified setting function that recalls the preferred (preset) temperature at the press of a button on the remote controller.
-
Built-In Weekly Timer
Temperature settings and On/Off control can be managed over a period of one week using the Weekly Timer.
-
Reverse cycle heating
Activate the heating mode to provide a warm and cosy space.
-
Full Inverter
Improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.
Product Specifications
| INDOOR UNIT | MSZ-AS90VGD | |
| OUTDOOR UNIT | MUZ-AS90VGD | |
| Rated Capacity | Cool (kW) | 9.0 |
| Heat (kW) | 10.3 | |
| ZERL Star Rating | Cooling (Hot / Average / Cold) |
3.5 / 3.0 / 3.5 |
| Heating (Hot / Average / Cold) |
2.0 / 2.5 / 3.0 | |
| Power Supply | 230V, Single, 50 / 60 Hz, Outdoor unit supply | |
| Dimensions (HxWxD) | Indoor (mm) | 365 x 1170 x 295 |
| Outdoor (mm) | 880 x 840 x 330 | |
| Weight | Indoor (kg) | 20 |
| Outdoor (kg) | 53 | |
| Refrigerant Type | R32 | |
| Sound Pressure Level (dBA) - Cooling | Indoor (Quiet-Lo-Mid-Hi-SHi) |
30 - 36 - 42 - 48 - 54 |
| Outdoor (dBA) (PWL) | 56 (69) | |
| Sound Pressure Level (dBA) - Heating | Indoor (Quiet-Lo-Mid-Hi-SHi) |
32 - 38 - 43 - 47 - 53 |
| Outdoor (PWL) | 56 (69) | |
View the full specifications on the brochure:
