Mitsubishi Electric 7.1kW Ducted Split System PEAD-M71JAA / SUZ-M71VADA
Mitsubishi Electric 7.1kW Ducted Split System PEAD-M71JAA / SUZ-M71VADA
Mitsubishi Electric | Model: PEAD-M71JAA.TH / SUZ-M71VAD-A.TH
For elegance and style, the PEAD Series complements the room environment with an aesthetically pleasing ceiling installation and high-pressure static fan.

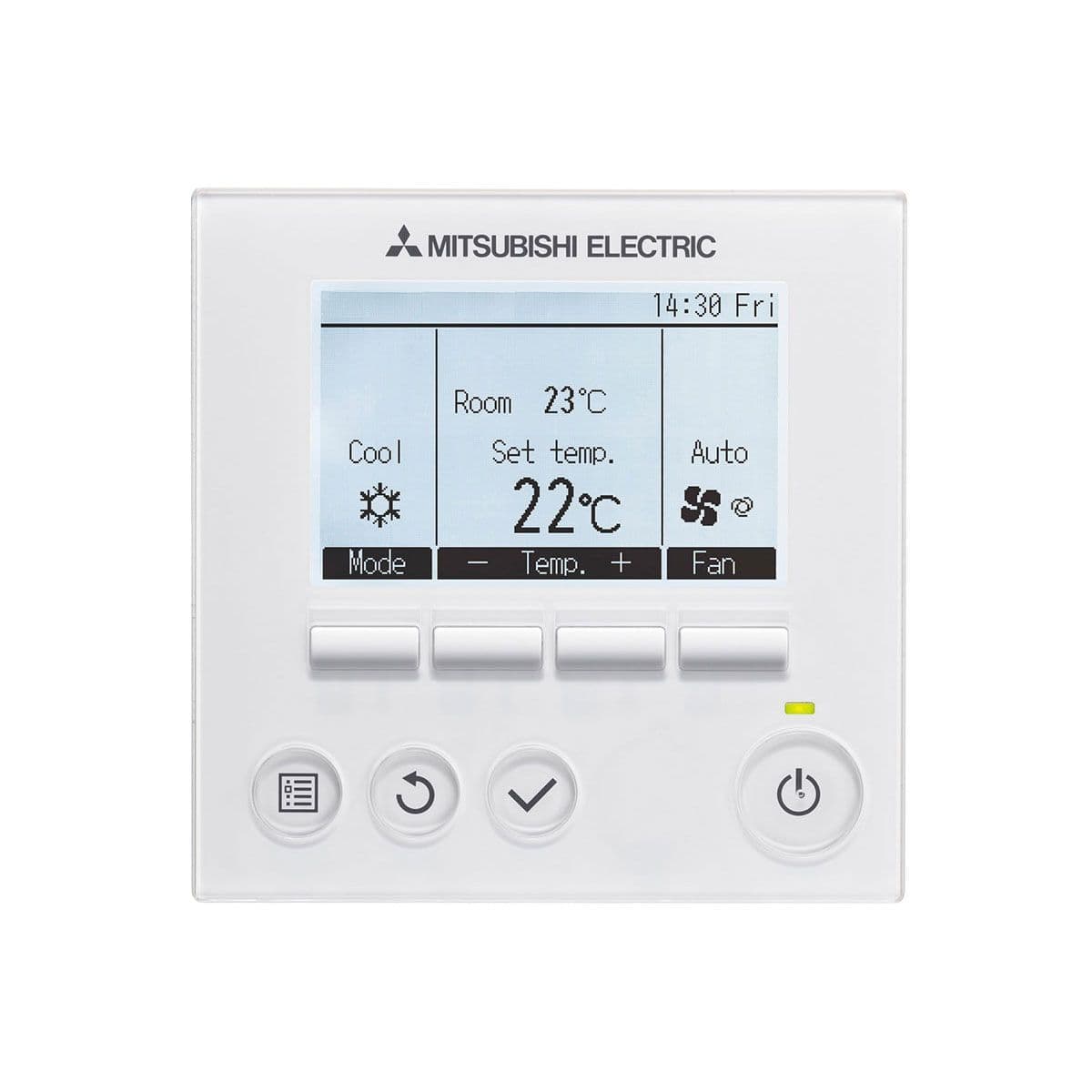

Includes PAR-41MAAM Wired Control with backlight.
Couldn't load pickup availability
Stock Availabilty Information
Stock Availabilty Information
We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.
When you place your order it may be in our warehouse or we may need to source it from our suppliers.
Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.
If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.
Mitsubishi Electric Ducted Air Conditioning Brochure
-
Low profile design
The height of the PEAD Series (5.0kW-14.0kW) has been unified to 250mm making installation possible in low ceilings with minimal clearance space.
-
Wide selection of fan speeds
3 fan speeds allowing a wide range of installation possibilities.
-
Long Life Filter
A long life filter supplied as standard and is removable for cleaning.
-
Wi-Fi Control
View AdapterUnlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
-
Discreet Design
The design allows for discreet installation with the air intake and outlet grilles visible maintaining your home or office with clean lines for interior décor.
-
Drainage pump installed as standard
The drainage pump can lift condensation water up to 700 mm from the lower surface of the indoor unit’s main body.
-
Wide external static pressure range
Selectable external static pressure of 35, 50, 70, 100 and 125 Pa.
-
Flexible Duct Design
With the flexibility of ducted design and up to 125Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.
-
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
Product Specifications
| INDOOR UNIT | PEAD-M71JAA.TH | |
| OUTDOOR UNIT | SUZ-M71VAD-A.TH | |
| Rated Capacity | Cool (kW) | 7.1 |
| Heat (kW) | 8.0 | |
| Air Volume | Cooling Lo-Mid-Hi L/S | 292-350-417 |
| Heating Lo-Mid-Hi L/S | 292-350-417 | |
| Dimensions (HxWxD) | Indoor (mm) | 250x1100x732 |
| Outdoor (mm) | 880x840x330 | |
| Weight | Indoor (kg) | 29 |
| Outdoor (kg) | 55 | |
| Refrigerant Type | R32 | |
| Sound Pressure Level (dBA) - Cooling | Indoor (Quiet-Lo-Mid-Hi-SHi) |
|
| Outdoor (dBA) (PWL) | ||
| Sound Pressure Level (dBA) - Heating | Indoor (Quiet-Lo-Mid-Hi-SHi) |
|
| Outdoor (PWL) | ||
View the full specifications on the brochure:
