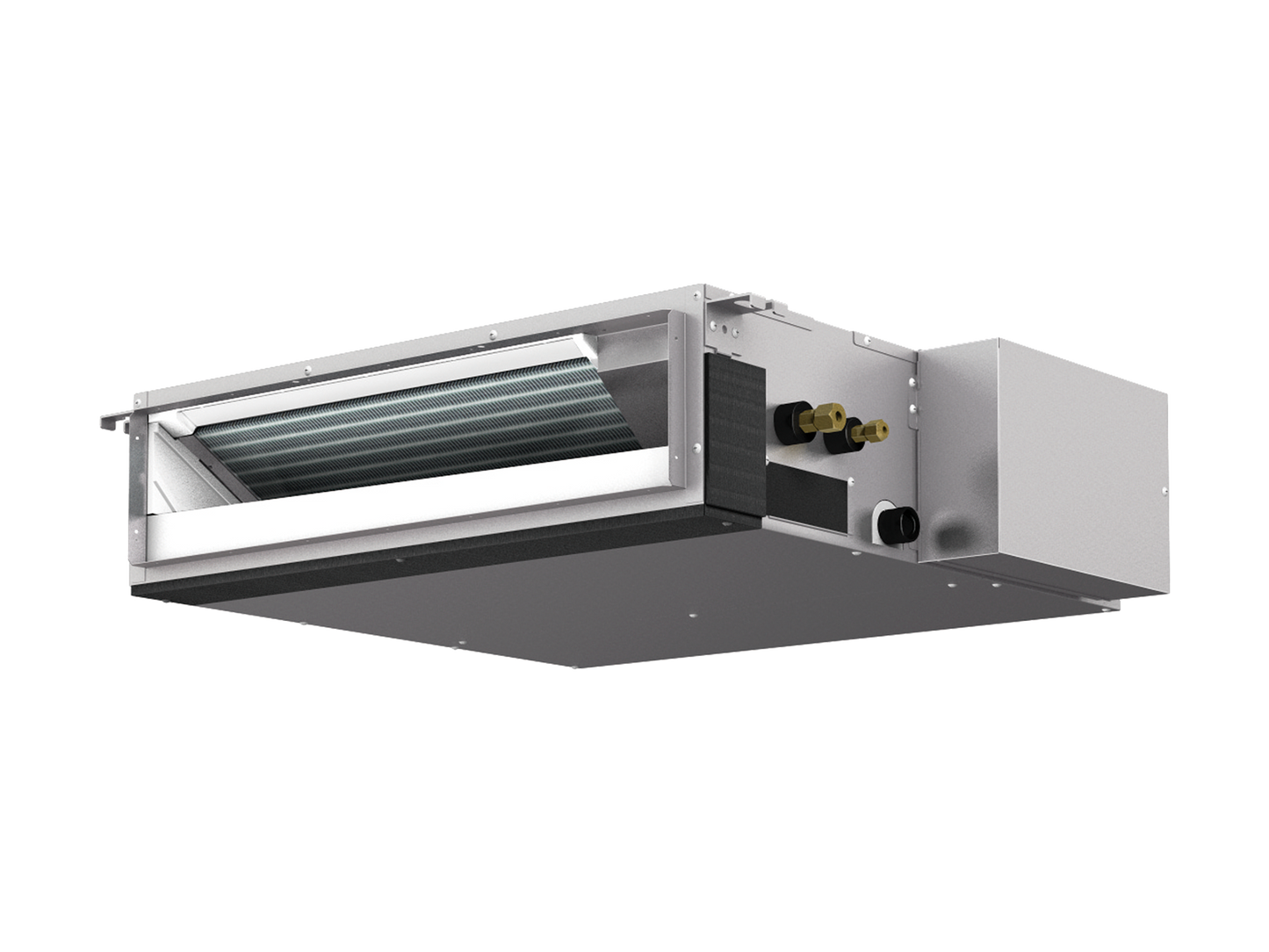

Mitsubishi Electric 7.1kW Bulkhead Indoor Unit SEZ-M71DA.TH
Mitsubishi Electric 7.1kW Bulkhead Indoor Unit SEZ-M71DA.TH
Mitsubishi Electric | Model: SEZ-M71DA.TH
Where air conditioning units should neither be seen nor heard, SEZ-M duct-mounted units do their job almost silently and invisibly. The units can be installed in the false ceiling and transport the conditioned air into the room via air apertures and ducts.

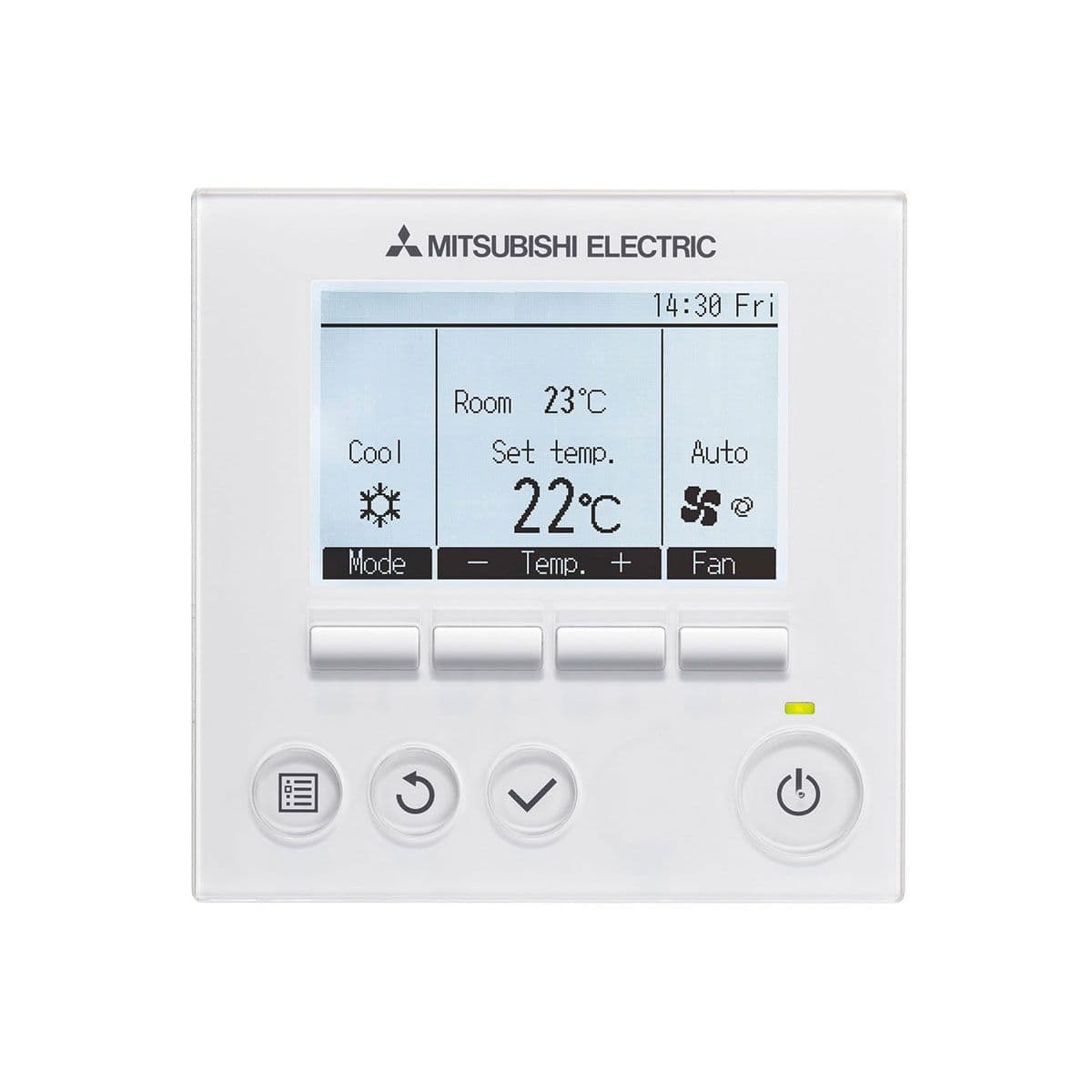

Includes PAR-41MAAM Wired Control with backlight.
Couldn't load pickup availability
Stock Availabilty Information
Stock Availabilty Information
We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.
When you place your order it may be in our warehouse or we may need to source it from our suppliers.
Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.
If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.
Mitsubishi Electric Ducted Air Conditioning Brochure
-
Low height - only 200mm
The Mitsubishi Electric compact design requires minimal space with a height of only 200mm, ideal for installation in buildings with lower ceilings.
-
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
-
DC Fan Motor
Efficiency of the DC motor is much higher than an equivalent AC motor. The closed type design conceals the electrical windings which increases safety.
-
Impressively Quiet
With the sound of rustling leaves measuring at 20dB, the Mitsubishi Electric SEZ-M Series (25/35 models) offers impressively quiet operation at a hushed 23dB*1 ; ensuring a calm and comfortable environment. *1 The sound level for SEZ - is measured in an anechoic chamber
-
Discreet Design
The design allows for discreet installation with the air intake and outlet grilles visible maintaining your home or office with clean lines for interior décor.
-
External Static Pressure 5 to 50 Pa
The unit can be installed in a wide range of building types with static pressures requirements ranging from 5 to 50 Pa, depending on site conditions.
Product Specifications
| Indoor Unit | SEZ-M71DA.TH | |
| Rated Capacity | Cool (kW) | 6.5 |
| Heat (kW) | 8.1 | |
| Dimensions (HxWxD) | Indoor (mm) | 200 x 1190 x 700 |
| Weight | Indoor (kg) | 25.5 |
| Refrigerant Type | R32 | |
| Sound Pressure Level (dBA) - Cooling | Indoor (Quiet-Lo-Mid-Hi-SHi) |
30 - 35 - 40 |
| Sound Pressure Level (dBA) - Heating | Indoor (Quiet-Lo-Mid-Hi-SHi) |
30 - 35 - 40 |
| Supply Air Duct | mm | 150 x 1060 |
View the full specifications on the brochure:
