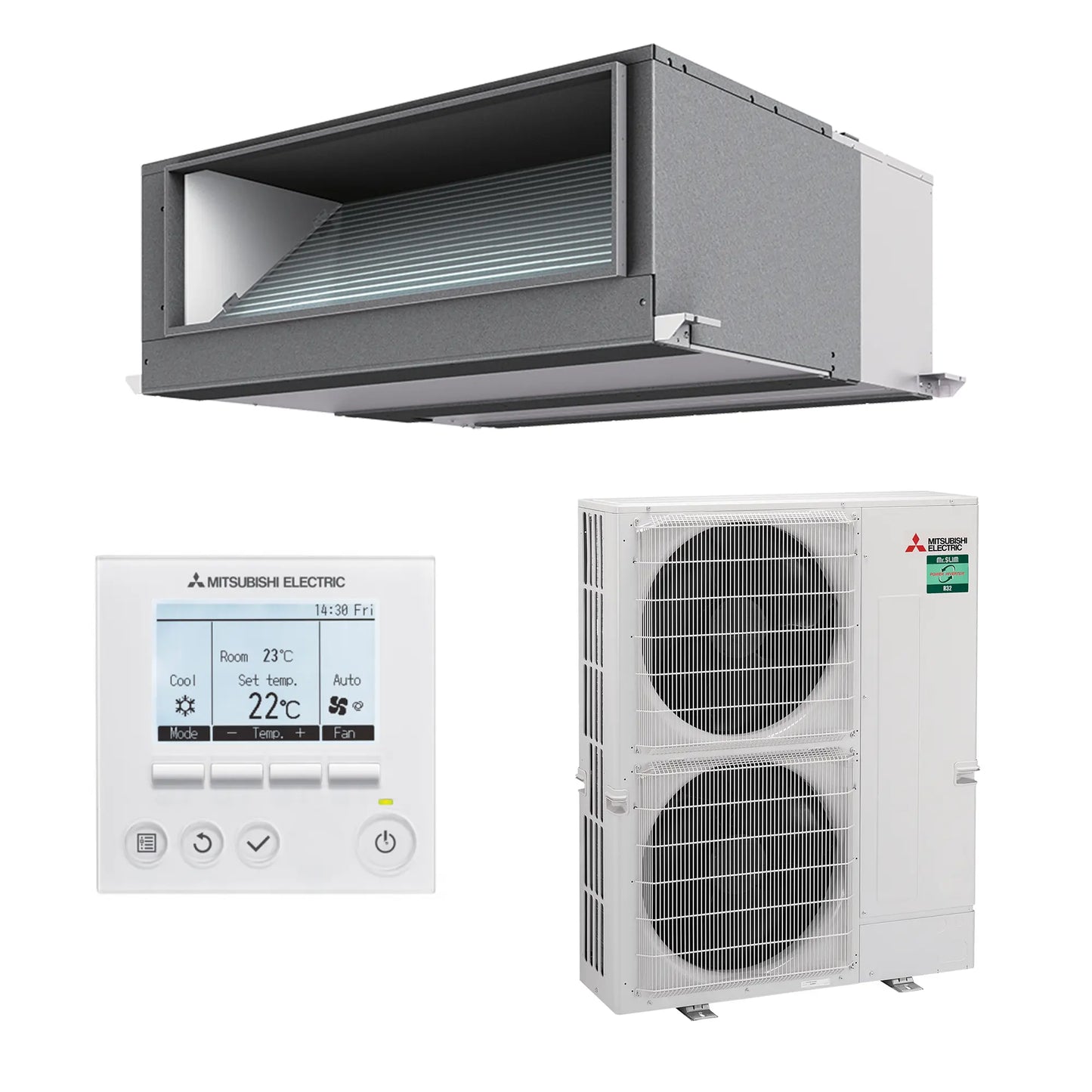

Mitsubishi Electric 25kW Ducted System (Power Inverter - 3Phase) PEAM250YKIT

Mitsubishi Electric 25kW Ducted System (Power Inverter - 3Phase) PEAM250YKIT

Mitsubishi Electric | Model: PEA-M250LAA / PUZ-ZM250YKA


Regular price $7,979.00
Regular price $8,549.00 Sale price $7,979.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Mitsubishi Electric Mr Slim air conditioning is suitable for both residential and light commercial use. It provides a wide range of indoor and outdoor units, making it adaptable for large homes, as well as small to medium-sized commercial spaces like cafes, restaurants, retail outlets, and small offices.

Stock Availabilty Information

We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.

When you place your order it may be in our warehouse or we may need to source it from our suppliers.

Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.

If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.

Mitsubishi Electric Large Capacity Ducted Systems Brochure

View full details
  • Large capacity single-phase power supply

    Mitsubishi Electric introduces the NEW Mr Slim large capacity ducted units in R32 refrigerant. The 18 kW indoor model can be connected to a single or three-phase Mr Slim outdoor unit, making the 18 kW model one of the largest ducted units available in the market with a single-phase power supply.

  • New side discharge outdoor unit

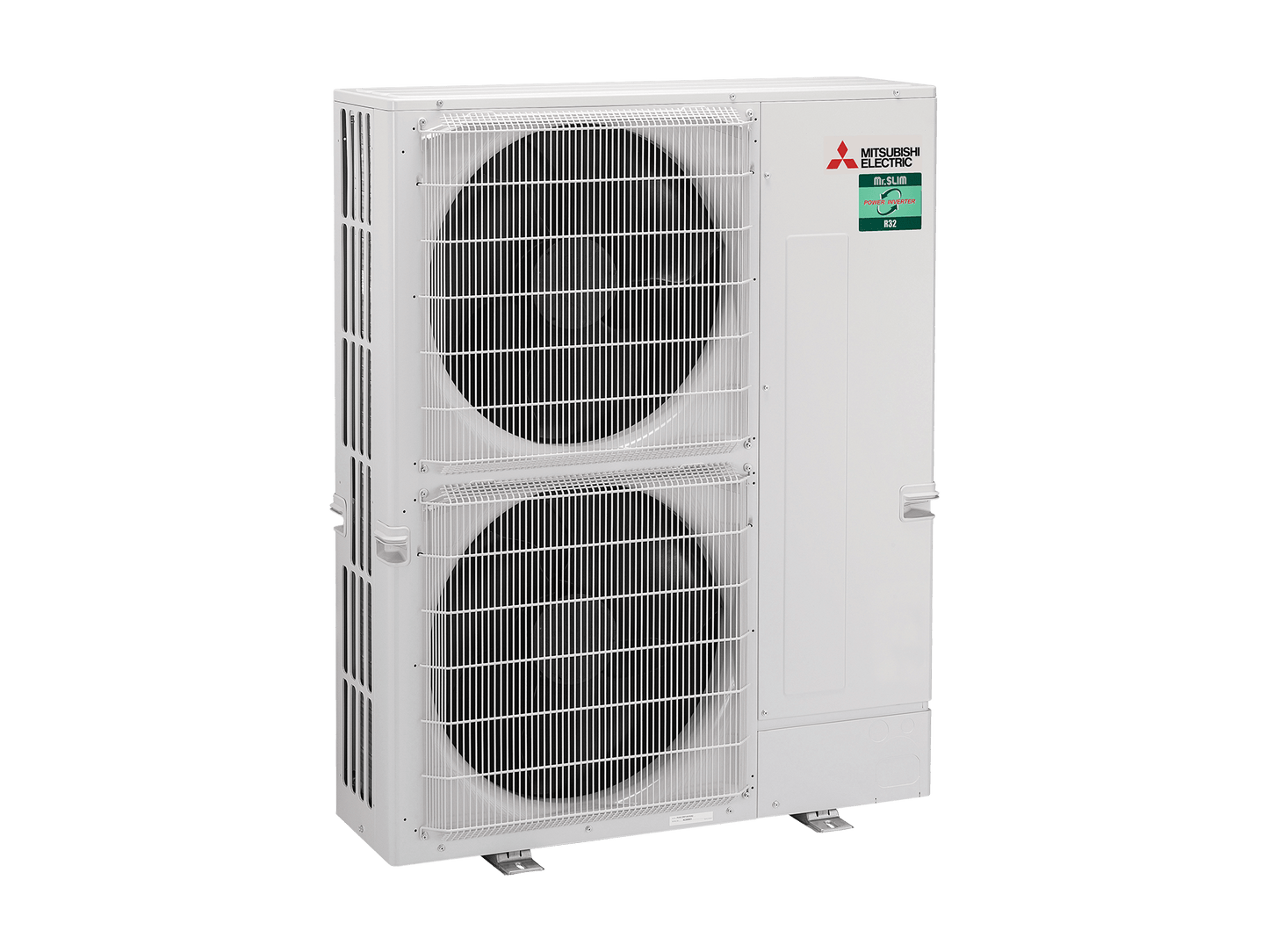

    The Mr Slim outdoor unit PUZ-ZM250YKA-A is now a side discharge model with twin fans, compared to the previous PUHZ-RP250YKM-A top discharge. The new model is only 1,338 mm high and 139 kg, making it possible to install the outdoor unit in discrete locations and easier to transport to sites.

  • Low input with new fan design

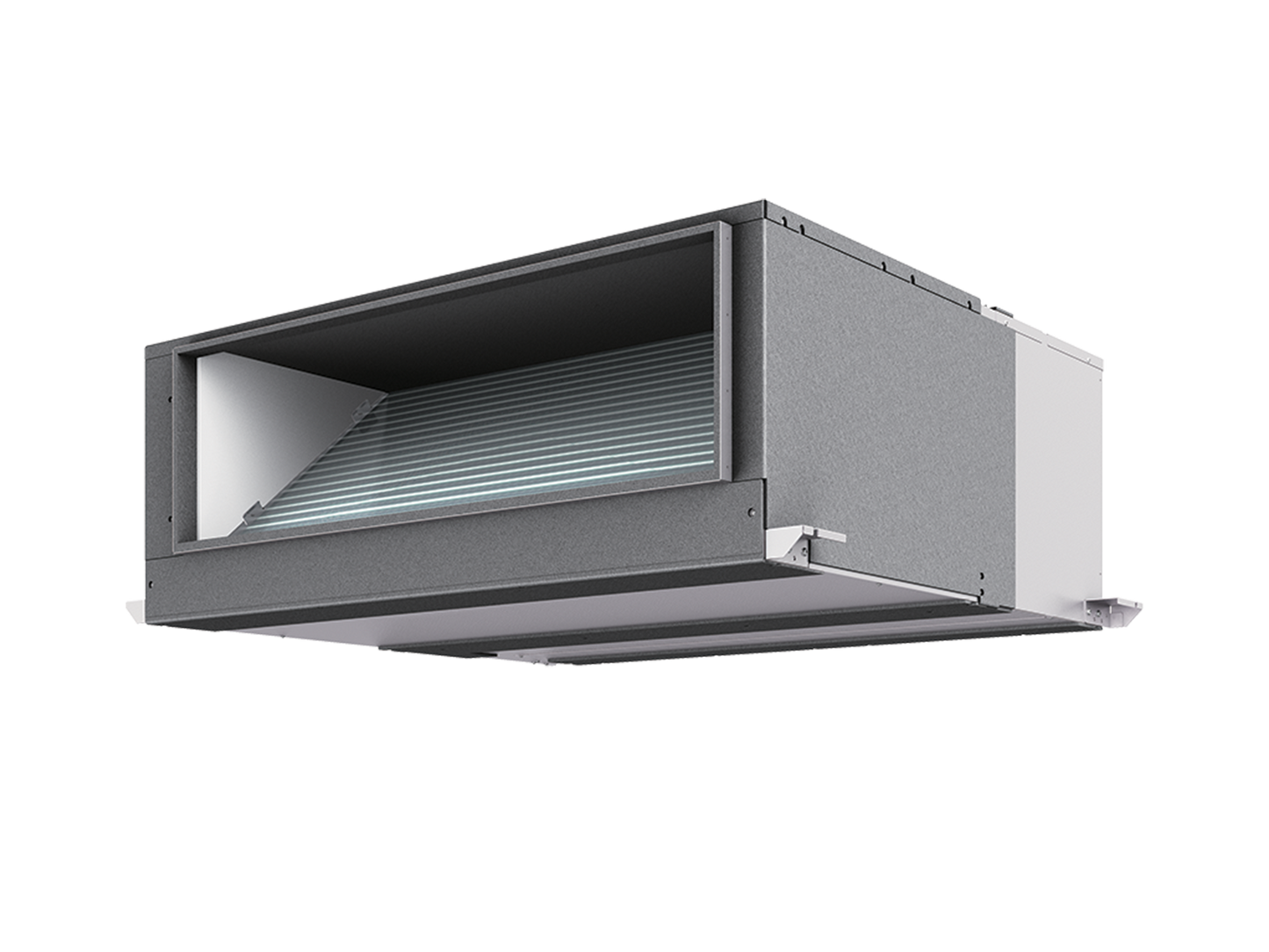

    The PEA-M LAA Series fan motor has been upgraded with a maximum external static pressure of up to 250 Pa and has four fan speed settings. We can achieve this with a newly designed patented Turbo In Sirocco fan that delivers high efficiency with lower power input.

  • Long pipe lengths

    The Mr Slim outdoor units feature power inverter technology with superior turndown capacity and long piping lengths up to 100m for PUZ-ZM200/250YKA-A. For installations with a pipe length of 50m or less, it is possible to use 7/8” soft-drawn copper pipe for Mr Slim outdoor units PUZ-ZM200/250YKA-A. These two models do not require additional refrigerant charge when the installed pipe length is 50m or less and helps reduce installation cost and time.

  • Flexible ducting design

    With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

  • Optional zone controller

    Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

  • R32 refrigerant

    R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

  • Reverse cycle heating

    Activate the heating mode to provide a warm and cosy space. Reverse cycle air conditioning can be a relatively efficient and economical way of heating and cooling compared to gas and electric space heaters. Mitsubishi Electric air conditioners are a quiet and clean source of heating for your home.

  • Full Inverter

    The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.

1 of 9

Large capacity ducted in single or three-phase

Get ready for a breath of fresh, powerful air! Mitsubishi Electric introduces the NEW Mr. Slim ducted units, with their large capacity up to 24.5 kW. The 18 kW model connects to either single or three-phase Mr. Slim outdoor units, making it one of the largest capacity single-phase models on the market. Saving you from hiring a Level 2 electrician for a potentially expensive power upgrade. The new PEA-M Series are designed to suit Australian homes with guaranteed cooling performance at higher ambient temperatures and heating performances at low ambient conditions.

Enjoy ultimate control right from your phone

After a long day, there’s nothing better than coming back to a comfortable home. The Mitsubishi Electric PEA-M-LAA series ducted air conditioning unit is ideal for just that, with optional Wi-Fi control that’s perfect for the whole family or workplace. Smart home integration means you can control your air con the way that works for you, using your smartphone, Google Assistant or Amazon Alexa devices. Turn specific zones on or off (requires optional zone controller), control your desired temperature or adjust your settings and schedules from anywhere in the world.

View WiFi Adapter

Enjoy a whole home air conditioning solution

Mitsubishi Electric ducted air conditioning is climate control at the touch of a button. A whole home air conditioning solution suitable for most existing or new homes. Ducted air conditioning system is an effective and convenient solution, with unobtrusive installation in the ceiling cavity or bulkhead space. The addition of an optional zone controller can allow this whole home application be connected to up to 8 zones to distribute air where it is needed, whilst being hidden from view with subtle diffusers or grilles. Ducted air conditioning allows cool or warm air to flow throughout the home.

View Zone Controller

Product Specifications

INDOOR UNIT PEA-M250LAA
OUTDOOR UNIT PUZ-ZM250YKA
Rated Capacity Cool (kW) 24.5
Heat (kW) 28
Dimensions (HxWxD) Indoor (mm) 470 x 1370 x 1120
Outdoor (mm) 1338 x 1050 x 330
Weight Indoor (kg) 88
Outdoor (kg) 139
Refrigerant Type R32

View the full specifications on the brochure:

Mitsubishi Electric Large Capacity Ducted Systems Brochure
