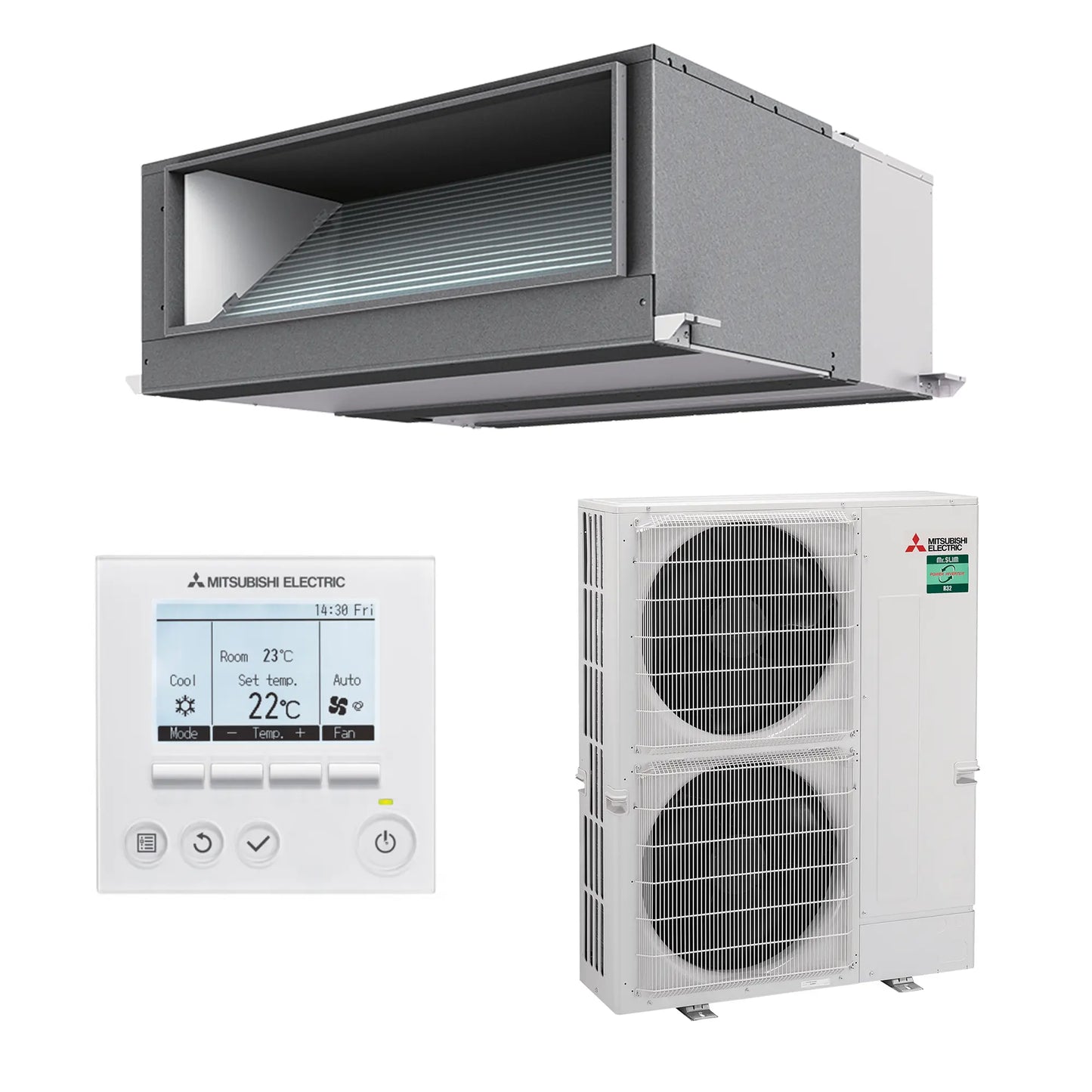

Mitsubishi Electric 20kW Ducted System (Power Inverter - 3Phase) PEAM200YKIT

Mitsubishi Electric introduces the NEW Mr Slim large capacity ducted units in R32 refrigerant. The 18 kW indoor model can be connected to a single or three-phase Mr Slim outdoor unit, making the 18 kW model one of the largest ducted units available in the market with a single-phase power supply.

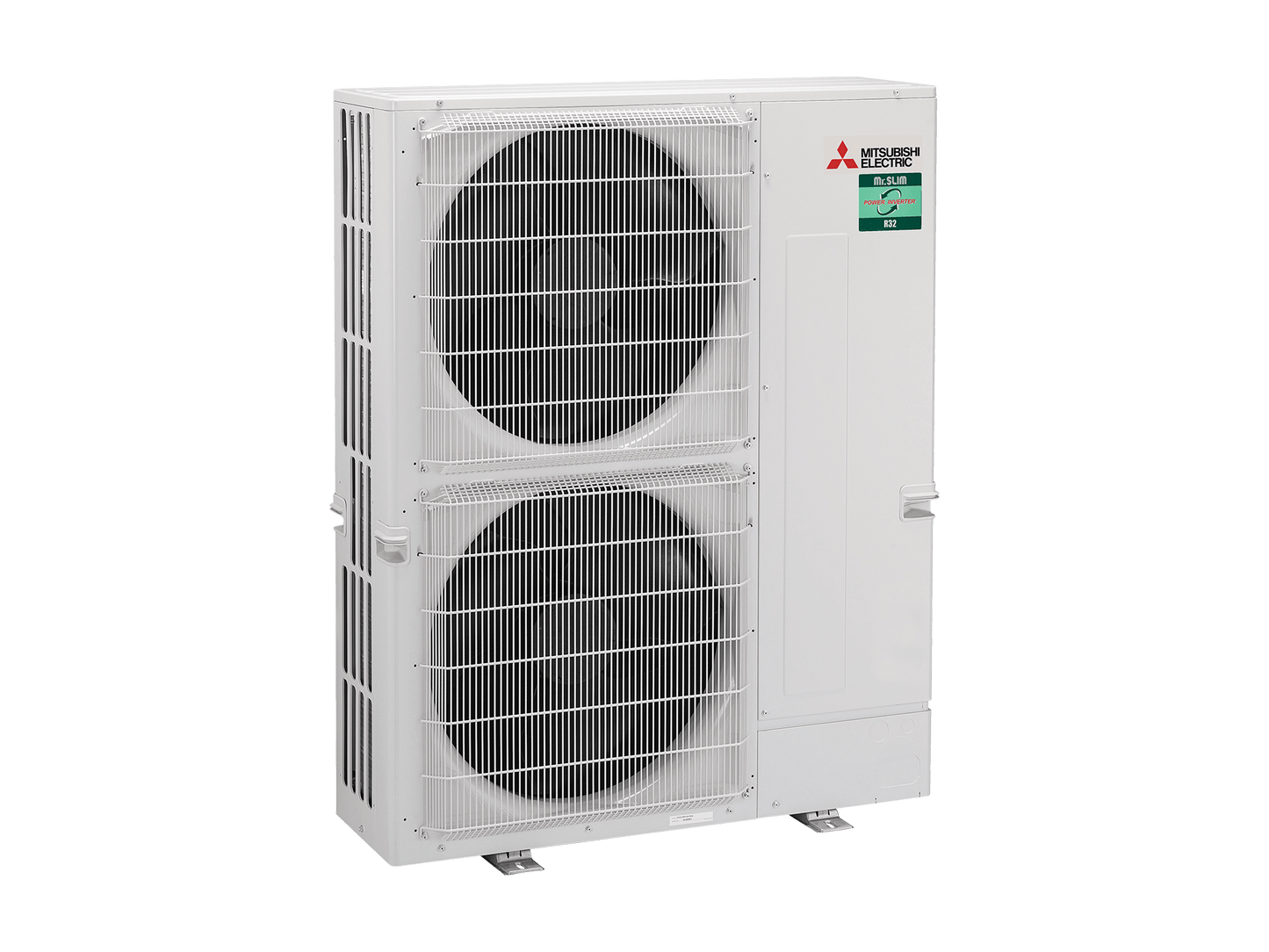

The Mr Slim outdoor unit PUZ-ZM250YKA-A is now a side discharge model with twin fans, compared to the previous PUHZ-RP250YKM-A top discharge. The new model is only 1,338 mm high and 139 kg, making it possible to install the outdoor unit in discrete locations and easier to transport to sites.

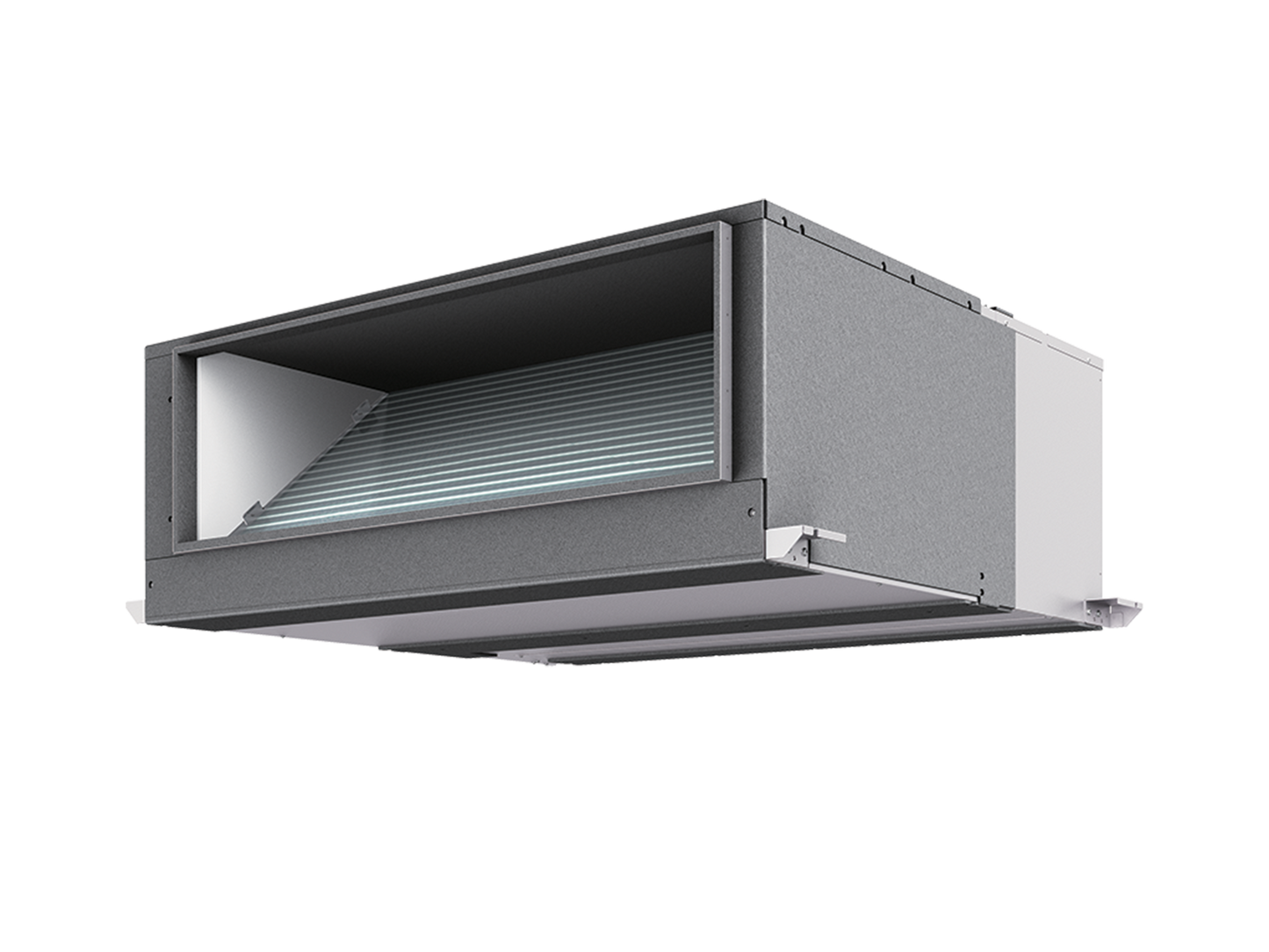

The PEA-M LAA Series fan motor has been upgraded with a maximum external static pressure of up to 250 Pa and has four fan speed settings. We can achieve this with a newly designed patented Turbo In Sirocco fan that delivers high efficiency with lower power input.

The Mr Slim outdoor units feature power inverter technology with superior turndown capacity and long piping lengths up to 100m for PUZ-ZM200/250YKA-A. For installations with a pipe length of 50m or less, it is possible to use 7/8” soft-drawn copper pipe for Mr Slim outdoor units PUZ-ZM200/250YKA-A. These two models do not require additional refrigerant charge when the installed pipe length is 50m or less and helps reduce installation cost and time.

With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

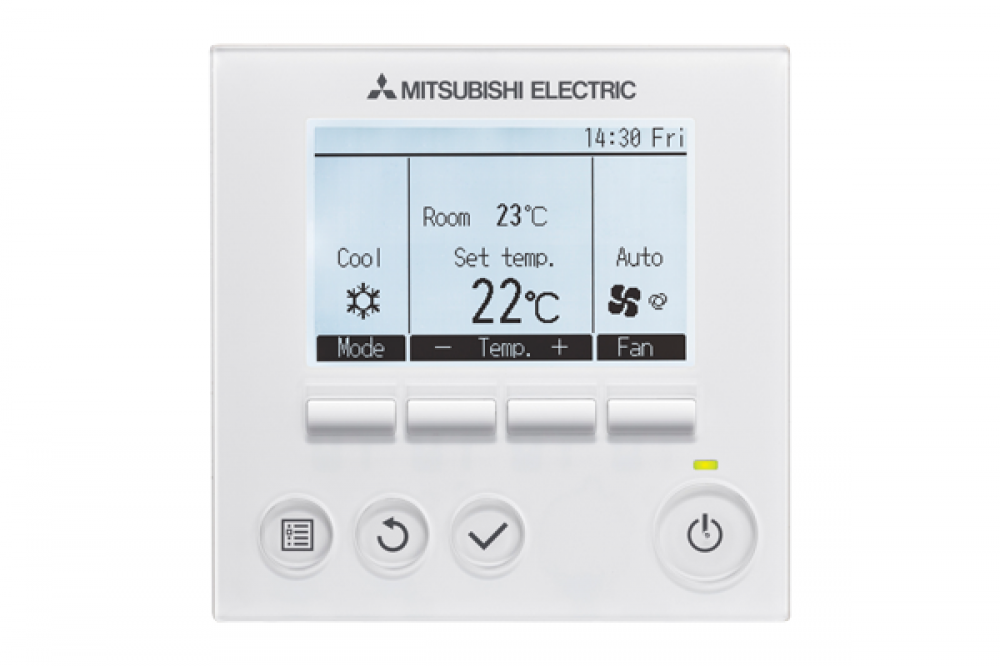

Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Activate the heating mode to provide a warm and cosy space. Reverse cycle air conditioning can be a relatively efficient and economical way of heating and cooling compared to gas and electric space heaters. Mitsubishi Electric air conditioners are a quiet and clean source of heating for your home.

The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.
