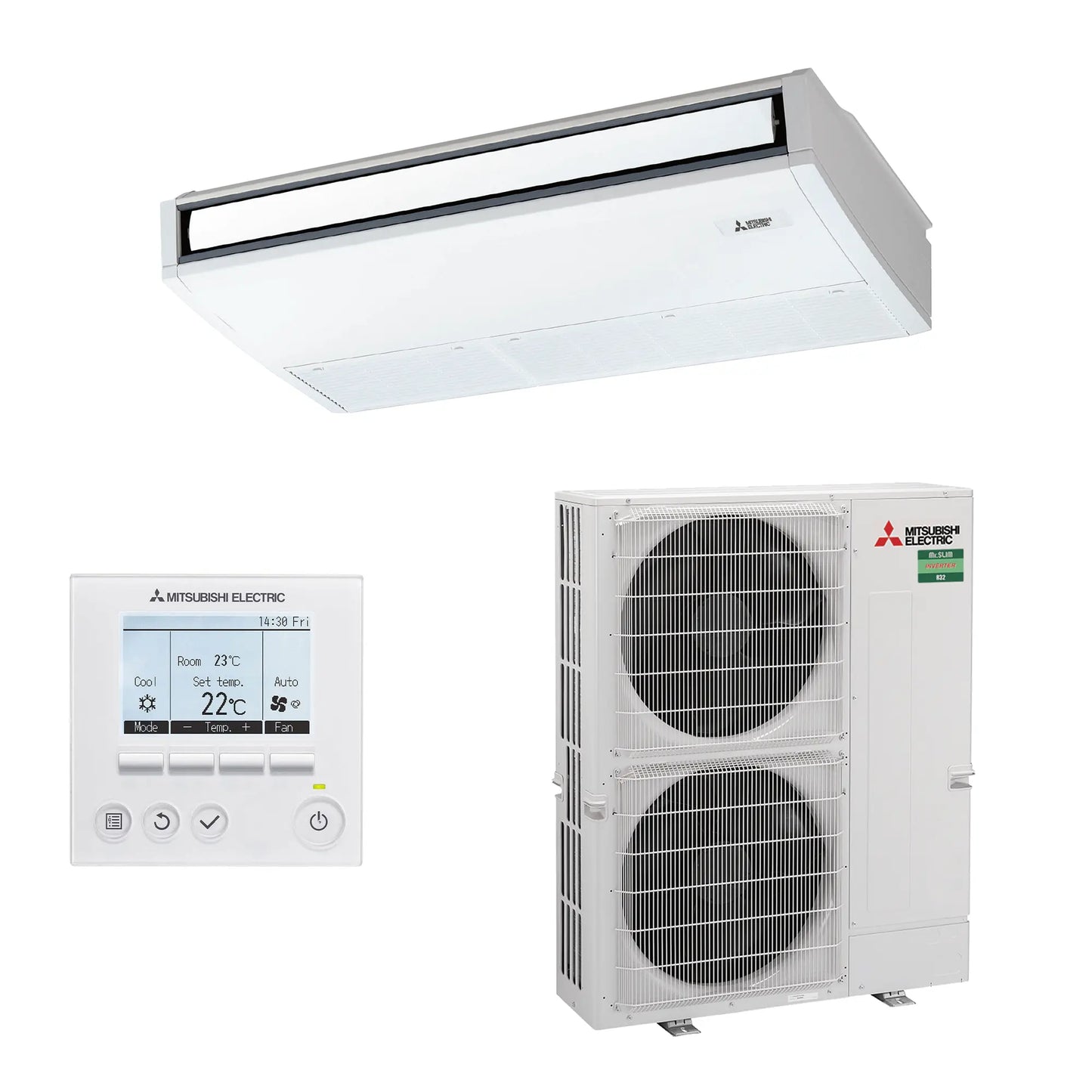

Mitsubishi Electric 14kW Under Ceiling Split System PCA-M140KA / PUZ-ZM140VKA-A.TH

Mitsubishi Electric 14kW Under Ceiling Split System PCA-M140KA / PUZ-ZM140VKA-A.TH

Mitsubishi Electric | Model: PCA-M140KA / PUZ-ZM 140VKA-A


Regular price $5,699.00
Regular price $6,143.00 Sale price $5,699.00
Sale Sold out
Tax included. Shipping calculated at checkout.

A stylish indoor unit design and airflow settings for both high and low-ceiling interiors expand installation possibilities. Together with excellent energy-saving control options, these units are the solution to diversified air conditioning needs.

Wired controller (PAR-41MAAM) included.

Power inverter ranges are available for this unit which includes a 3ph option for 10-14kw. Contact us for more information.

Stock Availabilty Information

We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.

When you place your order it may be in our warehouse or we may need to source it from our suppliers.

Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.

If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.

Mitsubishi Electric Mr Slim Brochure

View full details
  • Automatic air-speed adjustment

    In addition to the conventional 4-speed setting, units are equipped with an automatic airspeed adjustment mode. This setting automatically adjusts the air-speed to conditions that match the room environment.

  • High/Low ceiling mode

    Units are equipped with high and low ceiling operation modes that make it possible to switch the airflow volume to match room height.

  • Fresh outside-air intake

    Units are equipped with a knock-out hole that enables the induction of fresh outside-air.

  • R32 refrigerant

    R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

  • Wi-Fi Control

    Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.

    View adapter
  • Optional PAR-CT01MAA MA Touch Remote Controller

    The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.

    View Controller
1 of 6

Product Specifications

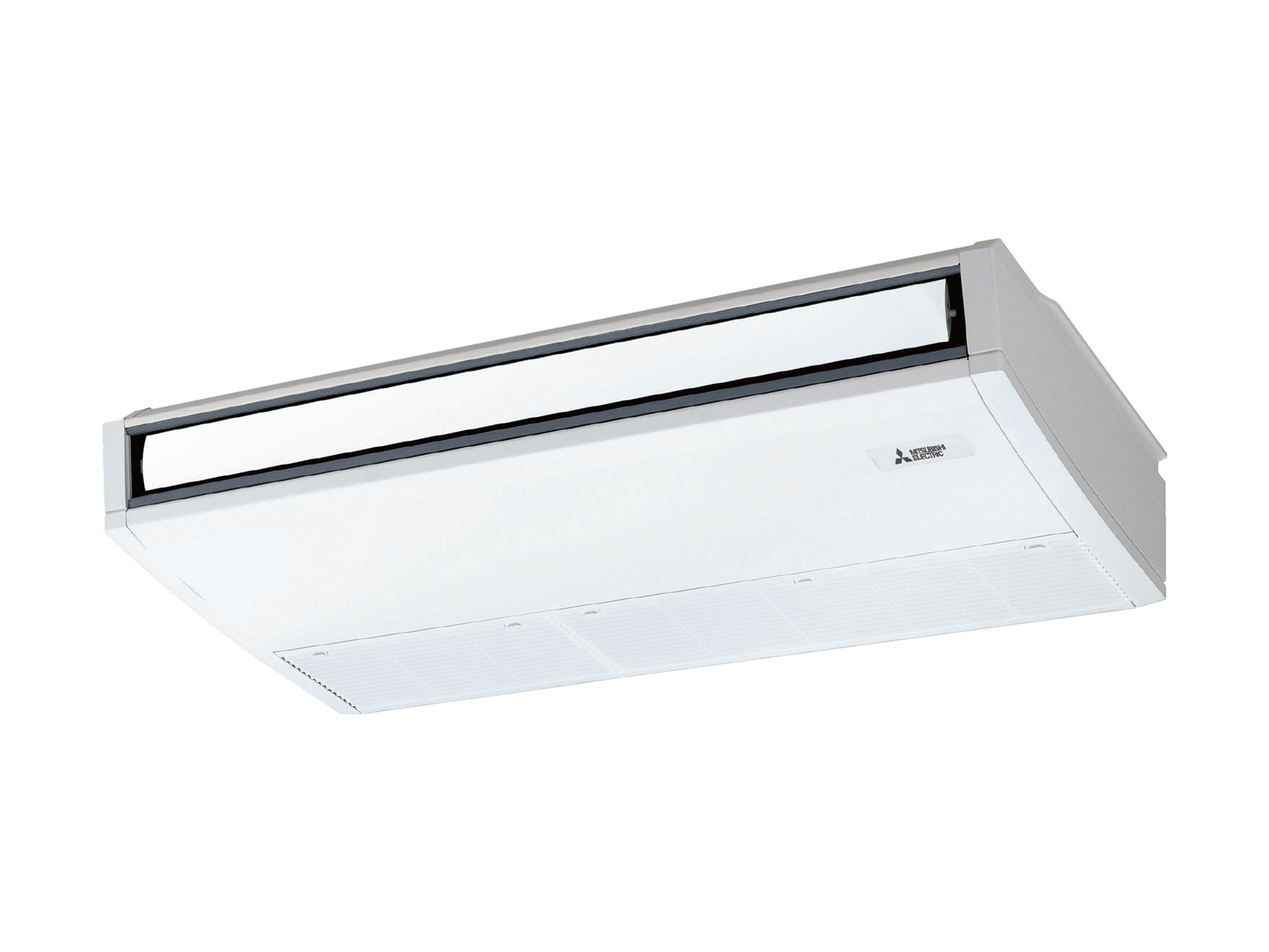

Indoor Unit PCA-M140KA

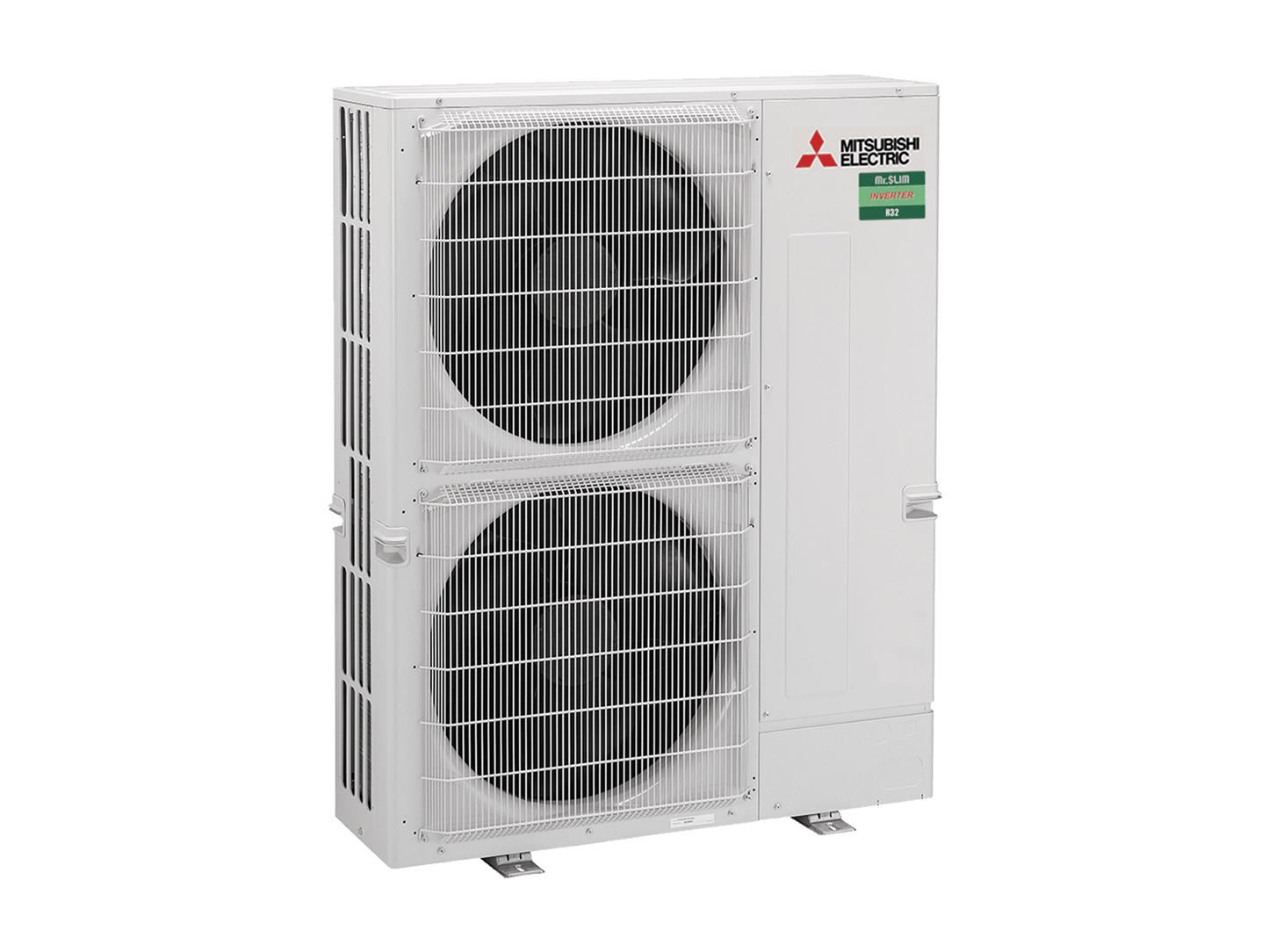

Outdoor Unit PUZ-ZM 140VKA-A
Rated Capacity Cool (kW) 14
Heat (kW) 16
Dimensions (HxWxD) Indoor (mm) 230 × 1600 × 680
Weight Indoor (kg) 40
Refrigerant Type R32

View the full specifications on the brochure:

Mitsubishi Electric Mr Slim Brochure
