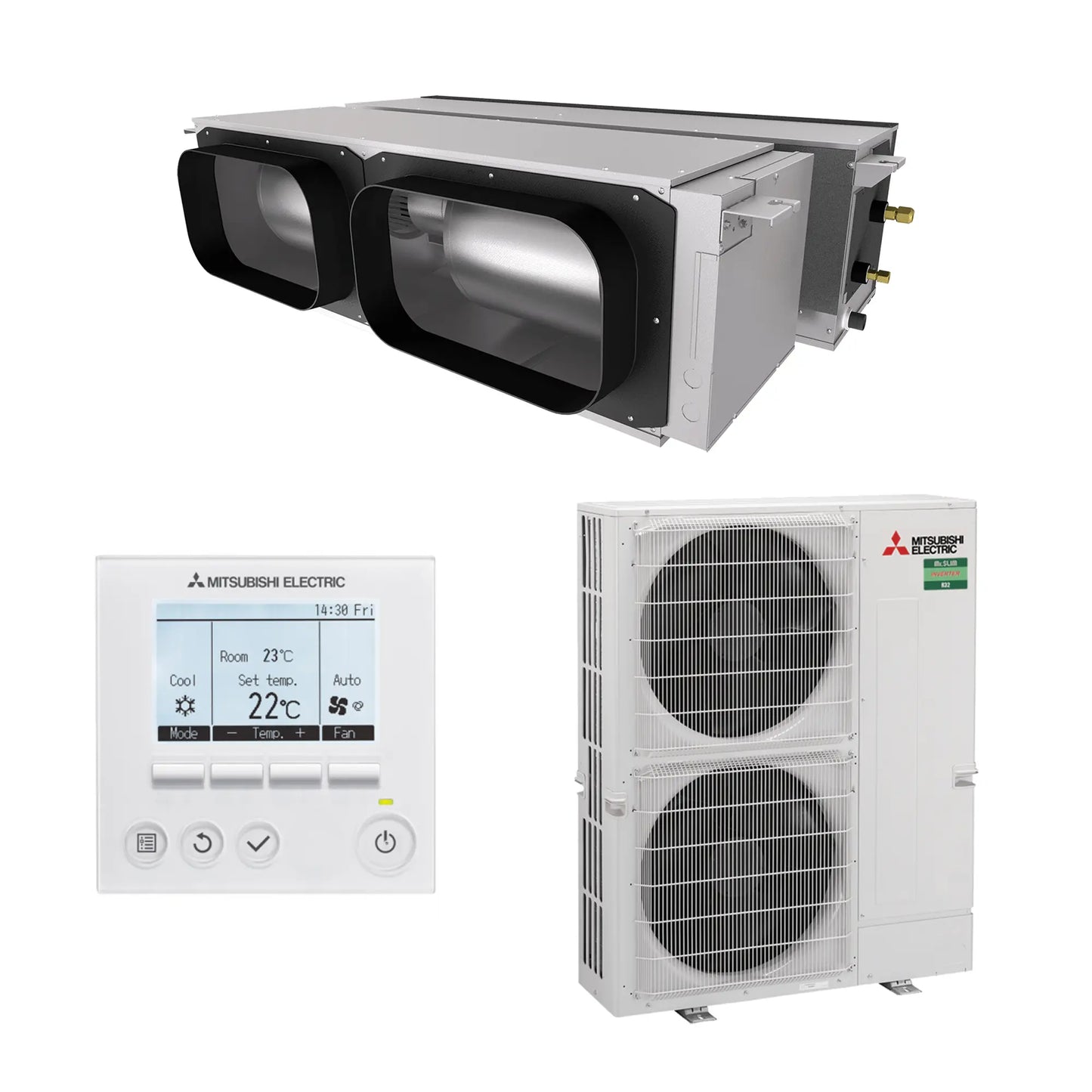

Mitsubishi Electric 14kW Ducted System (Power Inverter) PEAM140HAAVKIT2
Mitsubishi Electric 14kW Ducted System (Power Inverter) PEAM140HAAVKIT2
Mitsubishi Electric | Model: PEA-M140HAA / PUZ-ZM 140VKA-A
Mitsubishi Electric Power Inverter ducted air conditioning stands as the top-tier option for shaping your living space with cutting-edge technology. It delivers notable energy savings compared to non-inverter models. The key to our Power Inverters' superior energy efficiency lies in their ability to constantly adjust the system's output to uphold your ideal living conditions. This means a Power Inverter can quickly cool or heat your home and keep the desired temperature consistent, all while consuming less energy.
Couldn't load pickup availability
Stock Availabilty Information
Stock Availabilty Information
We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.
When you place your order it may be in our warehouse or we may need to source it from our suppliers.
Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.
If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.
Mitsubishi Electric Ducted Air Conditioning Brochure
-
2 piece construction
This ducted fan coil has a two-piece construction, which allows for the separation of the indoor unit heat exchanger and the fan deck assembly. This is beneficial for installation into the roof space, for greater room capacities and increased variation in airflow; ensuring operation that suits most room layouts.
-
Ideal for remodelling of existing houses
The unit can be installed in roof trusses thanks to the two-piece structure.
-
Easier Installation
The fan deck section and the heat exchanger can be separately transported and assembled in the ceiling space. This feature requires an access panel large enough to pass each part through.
-
High external static pressure
The HAA Series incorporate three-stage external static pressure conversions and four fan speed selections, offering the ultimate in comfort solutions. HAA Series units are designed for human comfort and to be installed in a wide range of building types with broad static pressures requirements ranging from 50 to 150Pa. *Application dependent on site conditions.
-
Optional zone controller
View ControllerUpgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
-
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
-
Flexible ducting design
With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.
-
Easy Maintenance
The fan section is accessible from either the bottom or the top, while the heat exchanger is accessible from the bottom or the side. This helps ease maintenance of the unit where access can be limited.
-
Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation
Mitsubishi Electric ducted air conditioning system can be integrated with optional Lossnay heat recovery ventilation to improve indoor air quality and energy efficiency. The Lossnay system provides tempered fresh air into your home by recovering the heat from the stale air from inside. Both systems can be controlled from one controller.
Perfect solution for home renovation
The PEA-M100-140HAA ducted air conditioning system is designed to split into two pieces making it ideal for existing home renovation with restricted roof space and access. The fan section can be separated from the heat exchanger for easier handling of the unit into the roof space before final assembly. With typical Australian house design in mind, the unique flange between the two section allows installation in narrow roof space between roof trusses.
Take comfort to a new level in your existing home
Great air conditioning isn’t just for new homes. Optional zone control takes your ducted air conditioning system up a notch, giving you the choice of up to 4 or 8, there is no need to condition air in unoccupied rooms. The PEA-M100-140HAA ducted air conditioning system has 4 fan speeds settings to allow for more precise airflow and temperature. The fan external static pressure can be set up to 150 Pa to allow for more flexible ductwork design and maintain the required airflow to each zone, even with all zones are activated.
Enjoy a whole home air conditioning solution
Mitsubishi Electric ducted air conditioning is climate control at the touch of a button. A whole home air conditioning solution suitable for most existing or new homes. Ducted air conditioning system is an effective and convenient solution, with unobtrusive installation in the ceiling cavity or bulkhead space. The addition of an optional zone controller can allow this whole home application be connected to up to 8 zones to distribute air where it is needed, whilst being hidden from view with subtle diffusers or grilles. Ducted air conditioning allows cool or warm air to flow throughout the home.
Product Specifications

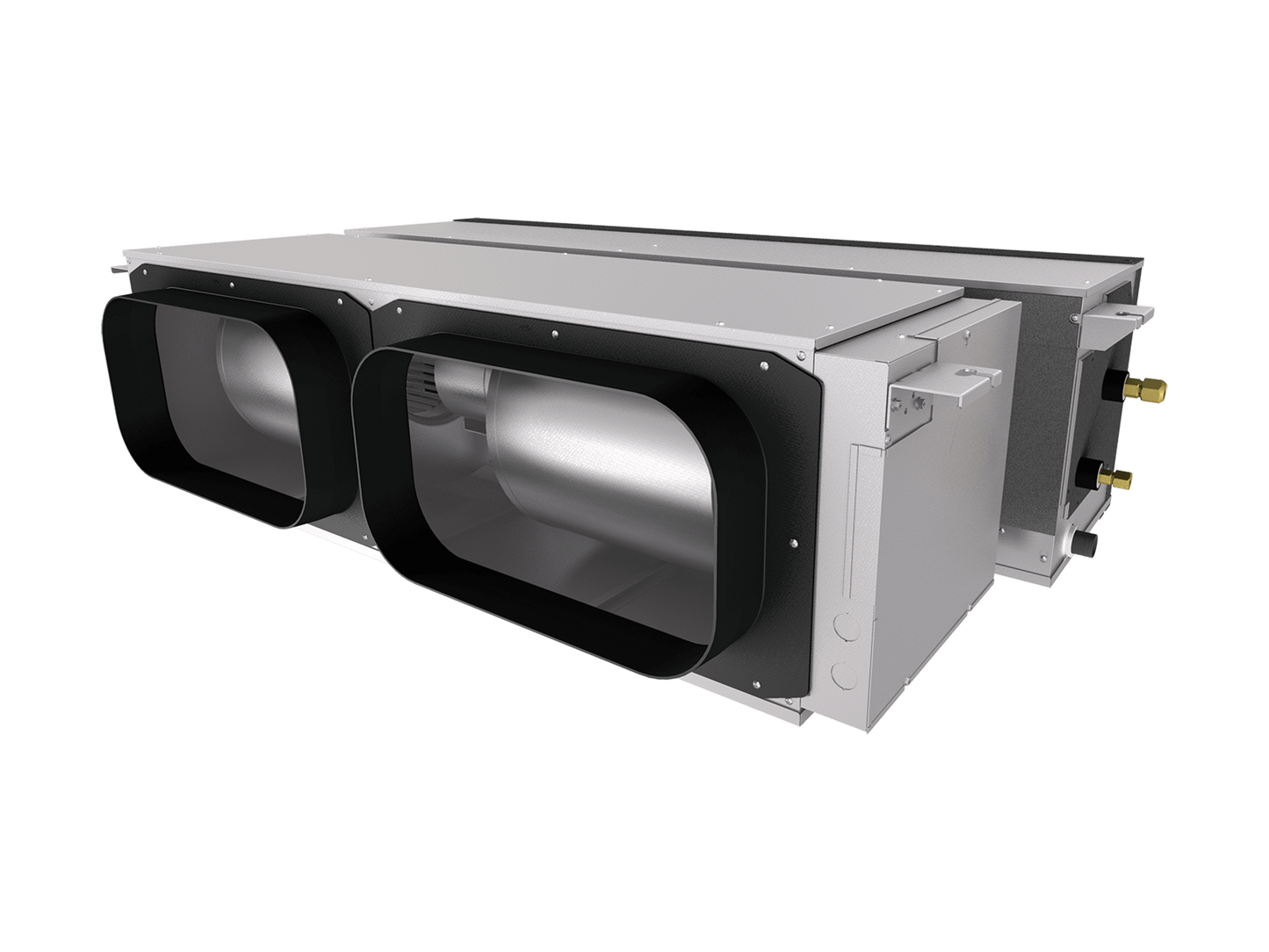

| INDOOR UNIT | PEA-M140HAA | |

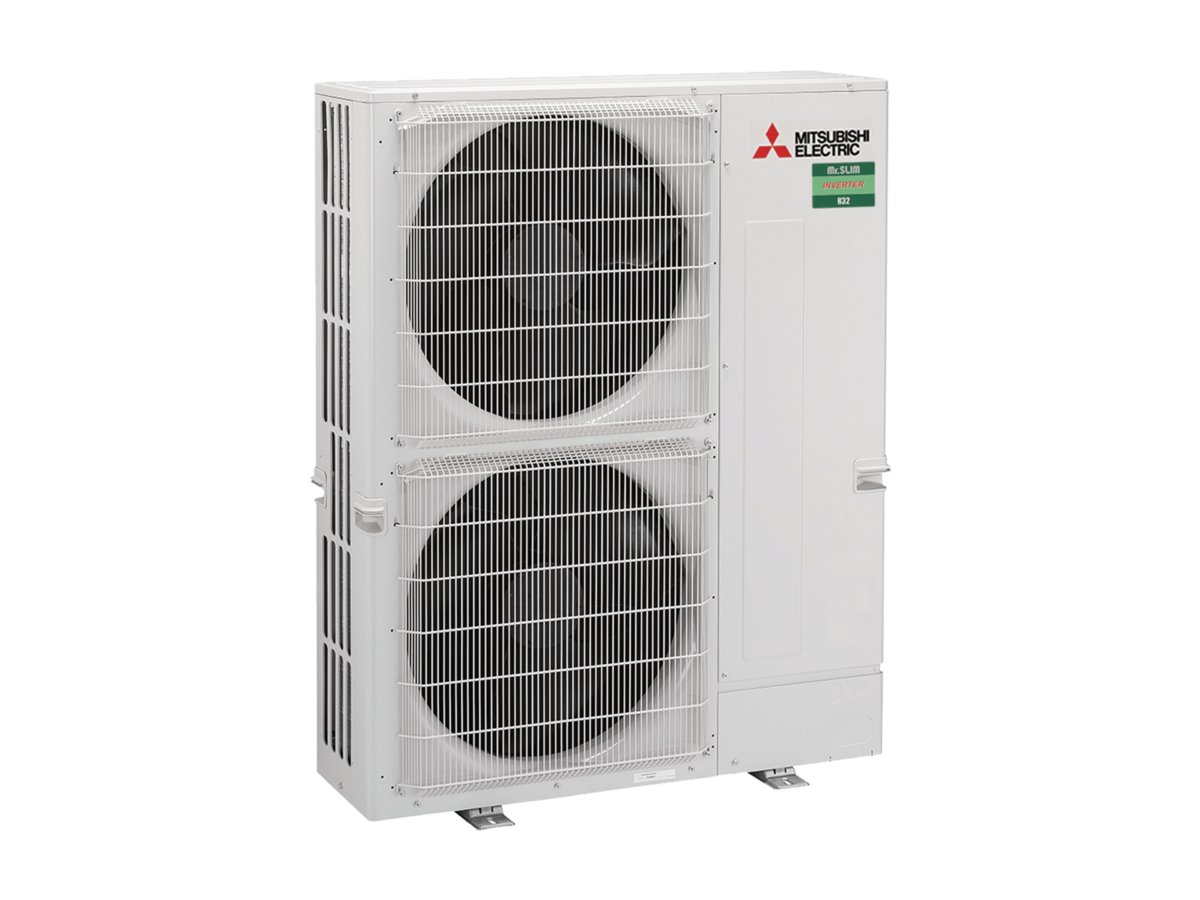

| OUTDOOR UNIT | PUZ-ZM 140VKA-A | |
| Rated Capacity | Cool (kW) | 14 |
| Heat (kW) | 16 | |
| Dimensions (HxWxD) | Indoor (mm) | 380 x 1405 x 900 |
| Outdoor (mm) | 1338 x 1050 x 330 | |
| Weight | Indoor (kg) | 66 |
| Outdoor (kg) | 113 | |
| Refrigerant Type | R32 | |
View the full specifications on the brochure:
