Mitsubishi Electric 14kW Ducted Split System (Power Inverter - 3 Phase) PEAD-M140JAA / PUZ-ZM140YKAA

Mitsubishi Electric 14kW Ducted Split System (Power Inverter - 3 Phase) PEAD-M140JAA / PUZ-ZM140YKAA

Mitsubishi Electric | Model: PEAD-M140JAADR1.TH / PUZ-ZM140YKA-A.TH

$6,350.00
$6,350.00
Sale Sold out
Tax included. Shipping calculated at checkout.

For elegance and style, the PEAD Series complements the room environment with an aesthetically pleasing ceiling installation and high-pressure static fan.

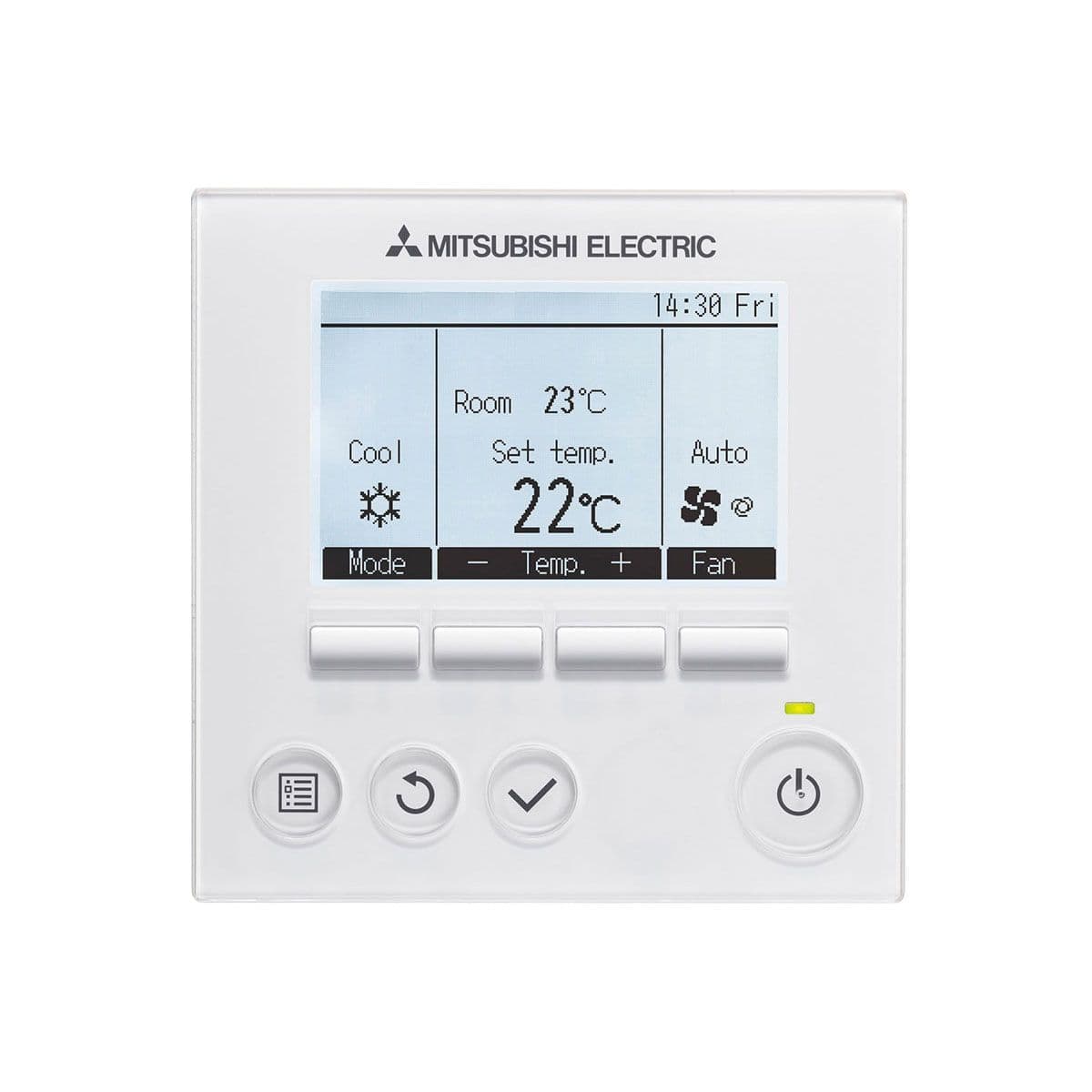

Includes PAR-41MAAM Wired Control with backlight.

Stock Availabilty Information

We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.

When you place your order it may be in our warehouse or we may need to source it from our suppliers.

Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.

If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.

Mitsubishi Electric Ducted Air Conditioning Brochure

View full details

  • Low profile design

    The height of the PEAD Series (5.0kW-14.0kW) has been unified to 250mm making installation possible in low ceilings with minimal clearance space.

  • Wide selection of fan speeds

    3 fan speeds allowing a wide range of installation possibilities.

  • Long Life Filter

    A long life filter supplied as standard and is removable for cleaning.

  • Wi-Fi Control

    Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.

    View Adapter

  • Discreet Design

    The design allows for discreet installation with the air intake and outlet grilles visible maintaining your home or office with clean lines for interior décor.

  • Drainage pump installed as standard

    The drainage pump can lift condensation water up to 700 mm from the lower surface of the indoor unit’s main body.

  • Wide external static pressure range

    Selectable external static pressure of 35, 50, 70, 100 and 125 Pa.

  • Flexible Duct Design

    With the flexibility of ducted design and up to 125Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

  • R32 refrigerant

    R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

1 9

Product Specifications

INDOOR UNIT PEAD-M140JAADR1.TH
OUTDOOR UNIT PUZ-ZM140YKA-A.TH
Rated Capacity Cool (kW) 14.0
Heat (kW) 16.0
Air Volume Cooling Lo-Mid-Hi L/S 533-650-767
Heating Lo-Mid-Hi L/S 533-650-767
Dimensions (HxWxD) Indoor (mm) 250x1600x732
Outdoor (mm) 1338x1050x330
Weight Indoor (kg) 44
Outdoor (kg) 112
Refrigerant Type R32
Sound Pressure Level (dBA) - Cooling Indoor
(Quiet-Lo-Mid-Hi-SHi)
Outdoor (dBA) (PWL)
Sound Pressure Level (dBA) - Heating Indoor
(Quiet-Lo-Mid-Hi-SHi)
Outdoor (PWL)

View the full specifications on the brochure:

Mitsubishi Electric Ducted Air Conditioning Brochure
