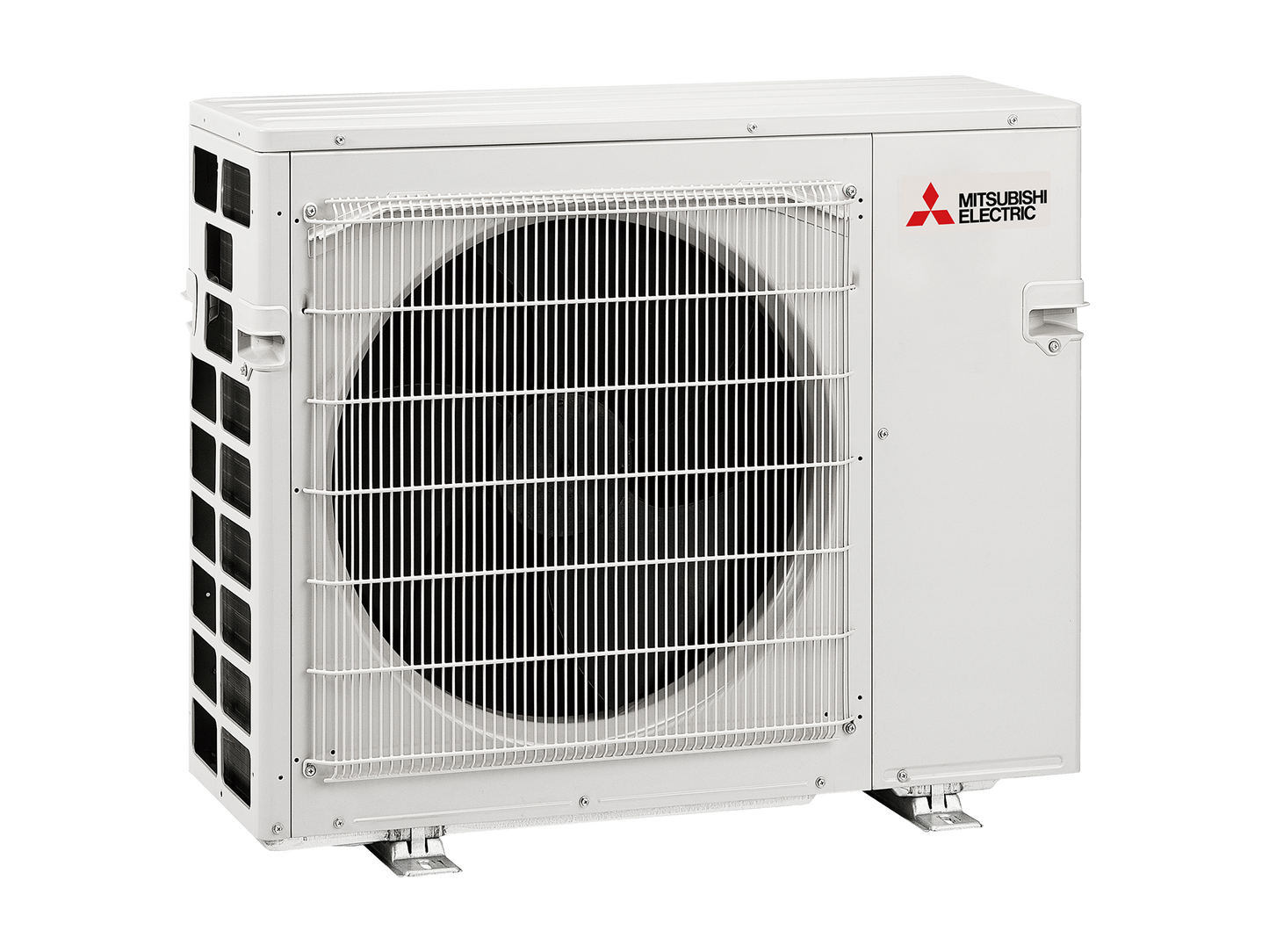

Mitsubishi Electric 10kW Outdoor Unit MXZ-5F100VGD-A1
Mitsubishi Electric 10kW Outdoor Unit MXZ-5F100VGD-A1
Mitsubishi Electric | Model: MXZ-5F100VGD
Mitsubishi Electric is pleased to introduce the R32 range of Multi Split Systems. The introduction of R32 in the MXZ Series has enabled an increased energy efficiency with just one-third of the global warming potential of the R410A. A Multi Split System is the perfect addition to any home, giving home owners the opportunity to select from a variety of indoor units to suit each room.
- Capacity: 10 kW
- Connectable Units: 5
- Energy efficient
- Wi-Fi Control
- Quiet operation
- Individual Temperature Control for Each Room
- Demand Response Capable
Couldn't load pickup availability
Stock Availabilty Information
Stock Availabilty Information
We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.
When you place your order it may be in our warehouse or we may need to source it from our suppliers.
Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.
If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.
-
Flexible indoor unit choice
Compatible indoor units range from wall mounted, floor standing, ceiling concealed, ceiling cassettes to ceiling suspended units.
-
Wi-Fi Control
Control your air conditioner with your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go!
-
Quiet operation
Thanks to a clever Silent Mode feature, Multi Split Systems are able to operate whilst keeping noise to the minimum.
-
Individual Temperature Control for Each Room
The capability of a Multi Split System lies in the capacity to individually control the temperature of all air conditioner units!
-
Keep Exterior Clutter-Free
Multi Split Systems are designed to keep the exterior of your home clutter free, with the ability to connect multiple (2-8) indoor air conditioning units to a single outdoor unit.
-
Guaranteed Operating Range
The MXZ series has a guaranteed operating range of -10°C to 46°C (Cooling), -5°C (-15°C*1) to 24°C (Heating). Optional air protection guide is required where ambient temperature is lower than -5°C.
Indoor Unit Compatibility
Select from a Wide Range of Stylish Indoor Units
For an attractive installation and optimum use of indoor space, choose the system that best matches your needs including wall mounted, floor standing, ceiling cassette, ceiling suspended and ceiling concealed units, available in various capacities. Refer to the following table to check if an indoor unit can be used with an outdoor unit. Combinations not listed in the table cannot be used.
Product Specifications
| Type | Inverter | |
| Outdoor Unit | MXZ-5F100VGD | |
| Capacity (Min / Rated / Max) | Cool (kW) | 3.9 / 10.0 / 11.0 |
| Heat (kW) | 4.1 / 10.0 / 14.0 | |
| Dimensions (HxWxD) | Outdoor (mm) | 796 x 950 x 330 |
| Weight | Outdoor (kg) | 62 |
| Refrigerant Type | R32 | |
| Number of connectable indoor units | 5 | |
View the full specifications on the brochure:
