Mitsubishi Electric 10kW Ducted System PEAMS100GAAVKIT

Mitsubishi Electric 10kW Ducted System PEAMS100GAAVKIT

Mitsubishi Electric | Model: PEA-M100GAA / PUZ-M 100VKA

$4,250.00
$4,250.00
Sale Sold out
Tax included. Shipping calculated at checkout.
The GAA Series is a range of high static pressure units, with increased variation in airflow options.

Stock Availabilty Information

We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.

When you place your order it may be in our warehouse or we may need to source it from our suppliers.

Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.

If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.

Mitsubishi Electric Ducted Air Conditioning Brochure

View full details

  • High external static pressure

    External Static Pressure: 50/100/150 Pa

  • Flexible ducting design

    With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

  • Longer maximum piping length

    Refrigerant can be piped up to 75 metres to the concealed ceiling unit, therefore creating a wide range of layout possibilities for unit installation.

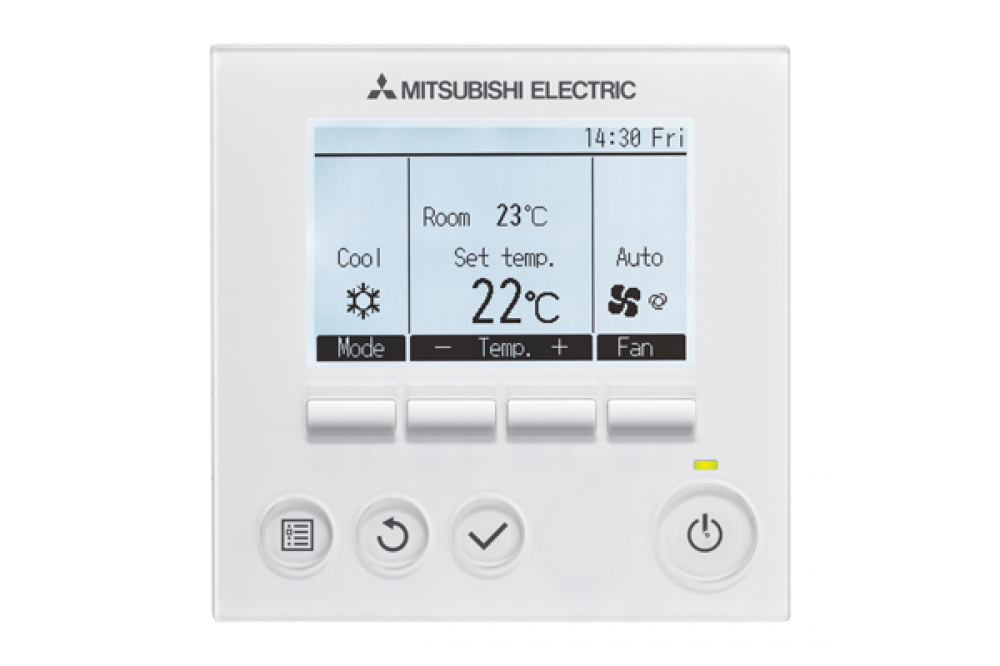

  • Optional zone controller

    Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

    View Controller

  • R32 refrigerant

    R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

1 5

Product Specifications

INDOOR UNIT PEA-M100GAA
OUTDOOR UNIT PUZ-M 100VKA
Rated Capacity Cool (kW) 10.0
Heat (kW) 11.2
Dimensions (HxWxD) Indoor (mm) 400 x 1400 x 634
Outdoor (mm) 981 x 1050 x 330
Weight Indoor (kg) 63
Outdoor (kg) 76
Refrigerant Type R32

View the full specifications on the brochure:

Mitsubishi Electric Ducted Air Conditioning Brochure
