POWERFUL PERFORMANCE
Product Specifications

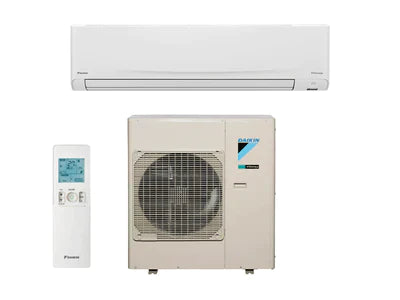

INDOOR UNIT | FTXM85WVMA | |
OUTDOOR UNIT | RXM85WVMA | |
Rated Capacity | Cool (kW) | 8.5 |
Heat (kW) | 9.0 | |
Capacity Range | Cool (kW) | 2.0 - 10.5 |
Heat (kW) | 1.9 - 11.6 | |
Indoor Airflow Rate (Hi) | Cool (L/s) | 380 |
Heat (L/s) | 403 | |
Indoor Fan Speeds | 5 steps, quiet and automatic | |
Energy Label / Star Ratings | Cool | 3 Stars |
Heat | 2 Stars | |
Front Panel Colour | White | |
Power Supply | 1 Phase, 220-240 V, 50 Hz | |
Power Input (Rated) | Cool (kW) | 2.35 |
Heat (kW) | 2.66 | |
E.E.R./C.O.P. | Cool/Heat | 3.62 / 3.38 |
TCSPF (Residential) | Hot / Avg / Cold | 5.28 / 4.91 / 5.15 |
HSPF (Residential) | Hot / Avg / Cold | 4.47 /3.93 / 3.50 |
A.E.E.R./C.O.P. | Cool/Heat | 3.59 / 3.36 |
Dimensions (HxWxD) | Indoor (mm) | 329 x 1240 x 278 |
Outdoor (mm) | 990 x 940 x 320 | |
Weight | Indoor (kg) | 19 |
Outdoor (kg) | 77 | |
Compressor Type | Hermetically sealed swing type | |
Refrigerant Type | R32 | |
Max Pipe Length | (m) | 30 |
Max Level Difference | (m) | 20 |
Pipe Sizes | Liquid (mm) | 6.4 |
Gas (mm) | 15.9 | |
Outdoor Operating Range (outdoor temp) | Cool (°CDB) | -10 to 46 |
Heat (°CWB) | -15 to 18 | |
Indoor Sound Level (H/SL) | Cool (dBA) | 49 / 35 |
Heat (dBA) | 55 / 51 | |
Outdoor Sound Level (H/L) | Cool (dBA) | 54 / 51 |
Heat (dBA) | 55 / 51 | |
Outdoor EPA Sound Power Level | Cool (dBA) | 66 |
Heat (dBA) | 67 |
