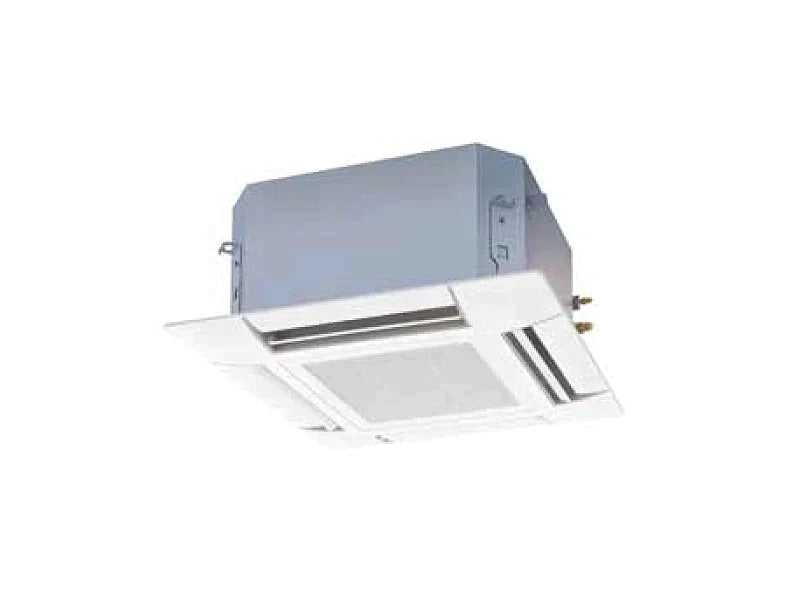

Daikin 6kW Compact Cassette Head FFA60RV1A
Daikin 6kW Compact Cassette Head FFA60RV1A
Daikin | Model: FFA60RV1A
Daikin's Fully Flat Compact Cassette is a powerful, efficient and discreet solution for commercial, retail and residential applications where both aesthetics and performance are paramount. This In-Ceiling Compact Cassette unit combines the latest technology with innovative functions for high operating efficiency and user comfort, all within a unique design that allows the visible panel to fit flush within standard architectural ceiling panels. The Fully Flat Cassette is a unique iconic design with an elegant white finish with a white decoration panel. The cassette blends in, resulting in a fully discreet unit.
Pair this Compact Cassette In-Ceiling unit with a Daikin Super Multi NX R32 outdoor unit.
Features:
- Capacity: 6kW
- Integrates seamlessly into a 600x600mm ceiling tile
- Optional presence and floor temperature sensor
- Whisper quiet operations
Couldn't load pickup availability
Stock Availabilty Information
Stock Availabilty Information
We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.
When you place your order it may be in our warehouse or we may need to source it from our suppliers.
Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.
If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.
Download the Daikin Super Multi NX Brochure

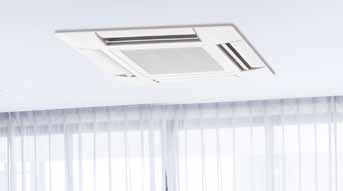

Completely Flat Finish
This discreet configuration allows the indoor unit to be installed completely flat to the ceiling. The unit is designed to fit inside a ceiling with a height of 300 mm or more and a ceiling grid of just 600 mm wide. This allows lights, speakers and sprinklers to be placed in adjoining ceiling tiles.

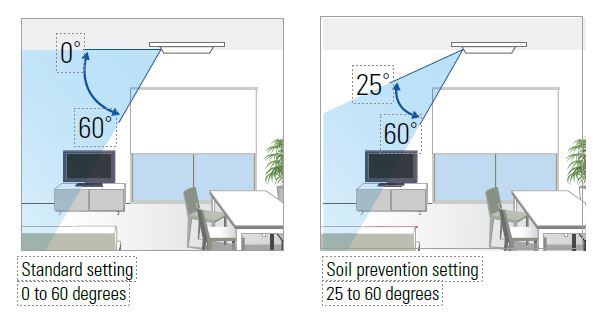

Soil Prevention Setting
This setting directs airflow away from the ceiling to prevent dust build-up and other marking. When it is selected, the flap arc is limited to a range of 25 to 60 degrees*. The result is a cleaner ceiling which requires minimal maintenance.
* Angles shown are provided as a guide. They may differ depending on the installation site.

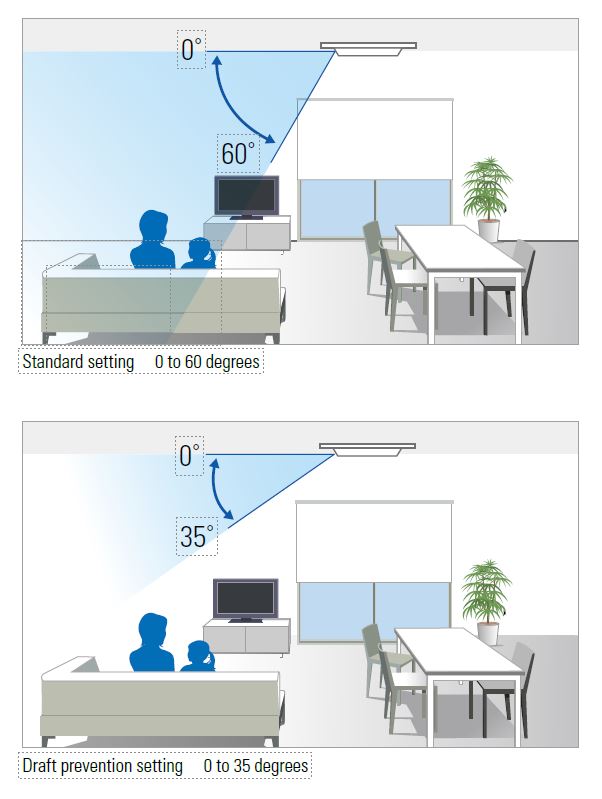

Draft Prevention Setting
The draft prevention setting stops air blowing directly on to a person’s body. With this setting, flap movement can be limited to an arc of 0 to 35 degrees*. This helps to eliminate uncomfortable drafts while maintaining effective airflow.
* Angles shown are provided as a guide. They may differ depending on the installation site.
Product Specifications
| INDOOR UNIT | FFA60RV1A | |
| Indoor Airflow Rate | Cool (L/s) | 250 |
| Heat (L/s) | 250 | |
| Indoor Fan Speeds | 2 steps | |
| Dimensions (HxWxD) | 286 x 575 x 575mm | |
| Weight | 17.5kg | |
| Power Supply | 1 phase, 220-240 V, 50 Hz | |
| Indoor Sound Level (H/SL) | Cool (dBA) | 55 |
| Heat (dBA) | 55 | |
| Indoor Sound Power Level | Cool (dBA) | 42/34 |
| Heat (dBA) | 42/34 | |
