Daikin 2.5kW Multi Bulkhead Indoor Unit CDXM25RVMA
Daikin 2.5kW Multi Bulkhead Indoor Unit CDXM25RVMA
Daikin | Model: CDXM25RVMA

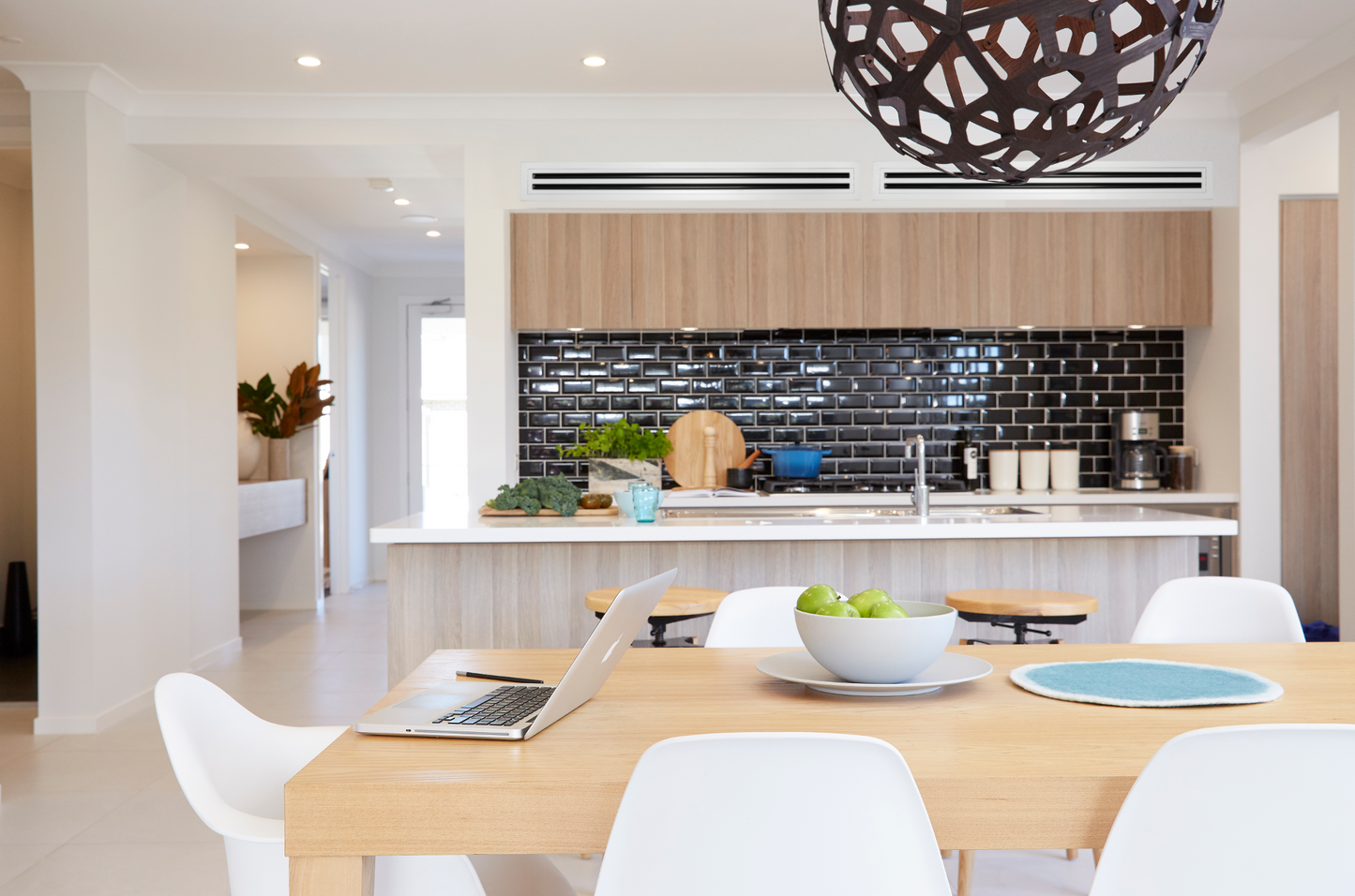

The Bulkhead range is ideal for air conditioning areas where a discreet installation is preferred. The indoor unit fits flush into the ceiling with only the suction air and discharge grilles visible inside your home, leaving the maximum floor and wall space for furniture, decoration and fittings. The Bulkhead range is discreet with whisper-quiet operations to ensure limited impact on internal room aesthetics and acoustics.
Pair this Bulkhead unit with a Daikin Super Multi NX R32 outdoor unit.
Couldn't load pickup availability
Stock Availabilty Information
Stock Availabilty Information
We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.
When you place your order it may be in our warehouse or we may need to source it from our suppliers.
Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.
If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.
Download the Daikin Super Multi NX Brochure

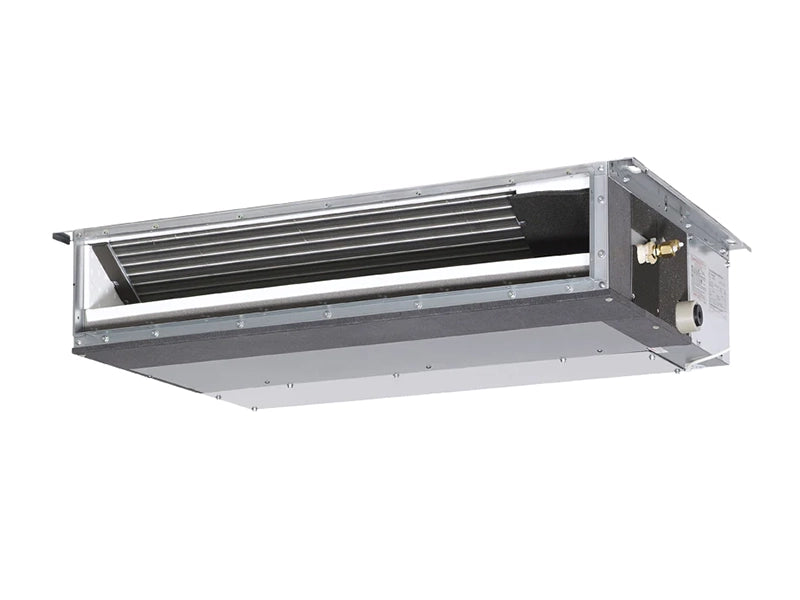

Concealed Installation
The duct-connected type can be hidden inside the ceiling to create a clean exterior. It is suitable for living rooms with shallow tray ceilings or areas requiring a discreet appearance. Low and middle range external static pressure models are suitable for both uses, providing excellent design flexibility.
Compact Installation Height
Low external static pressure models are 200 mm high and
require a space of just 240 mm between the drop ceiling and ceiling slab. With these compact measurements, any unit can easily be installed in even shallow tray ceilings.
Product Specifications
| INDOOR UNIT | CDXM25RVMA | |
| Indoor Airflow Rate | Cool (L/s) | 158 |
| Heat (L/s) | 158 | |
| Indoor Fan Speeds | 5 steps, quiet and automatic | |
| Dimensions (HxWxD) | 200 x 900 x 620mm | |
| Weight | 25kg | |
| Power Supply | 1 phase, 220-240 V, 50 Hz | |
| Indoor Sound Level (H/SL) | Cool (dBA) | 49 |
| Heat (dBA) | 49 | |
| Indoor Sound Power Level | Cool (dBA) | 35/31/29 |
| Heat (dBA) | 35/31/29 | |
