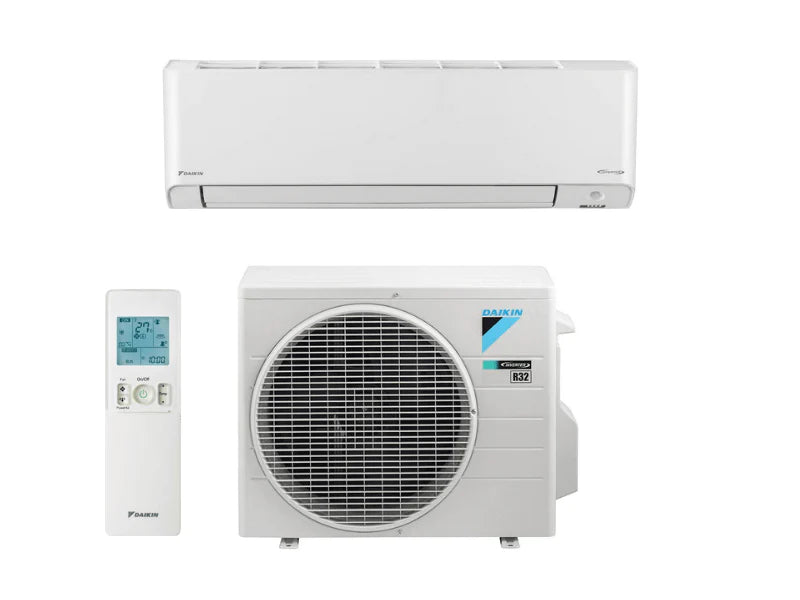

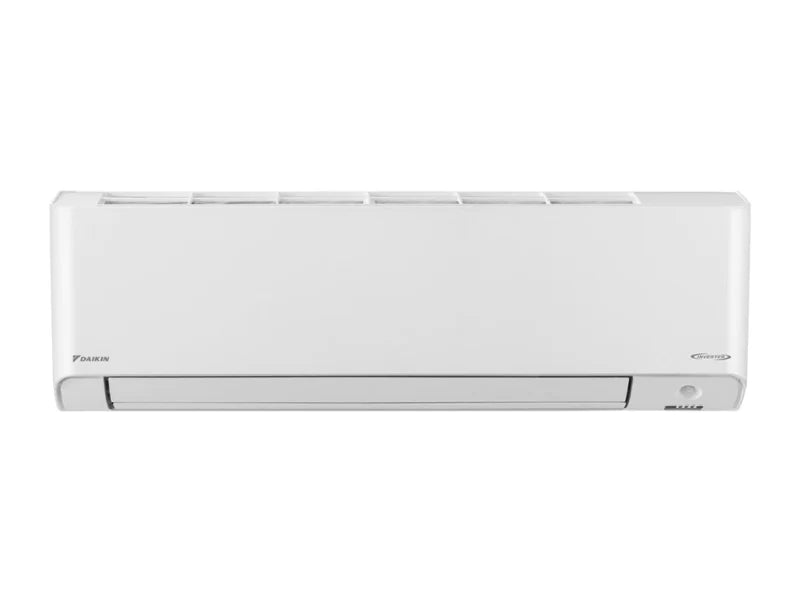

Daikin 2.2kW Split System Air Conditioner (Alira X Series) FTXM20Y

Daikin 2.2kW Split System Air Conditioner (Alira X Series) FTXM20Y

Daikin | Model: FTXM20WVMA / RXM20WVMA

$1,120.00
$1,238.00 $1,120.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Alira X is a step ahead of the rest, delivering a perfect fusion of whisper-quiet comfort, industry-leading energy efficiency and indoor air quality technology.

Stock Availabilty Information

We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.

When you place your order it may be in our warehouse or we may need to source it from our suppliers.

Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.

If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.

Download the Daikin Alira X Flyer

View full details

KEEP YOUR FAMILY SAFE & WARM THIS WINTER

Remove more than 99%* of indoor air pollutants such as odours, viruses, mould and allergens with Streamer Technology.

  • Perfect Fusion

    New R32 Alira X is a perfect blend of progressive design aesthetic, superior energy performance & indoor air quality technology.

  • Advanced Purification

    Each model is fitted with three
    layers of filtration, prefilter for large particulates, enzyme blue deodorising filter for odours and Daikin’s Streamer technology for powerful oxidative decomposition of pollutants.

  • Built in Wi-Fi

    Wi-Fi module for connection to Daikin's Mobile Controller smartphone interface is now conveniently included inside the casing of the indoor unit.

  • Mould-Proof Operation

    Activates after cooling or dry
    operation to prevent the build up of mould and odour.*

  • Intelligent Comfort

    The 2-Area Intelligent Eye** is so
    clever it can now either direct airflow towards you or away from you for draught free comfort. If the room is unoccupied the unit will automatically enable energy saving operations.

  • ‍Coanda Airflow

    Discharge louvres designed to stream air along the ceiling for longer throws and delivering rapid cooling and even temperature distribution.

1 6

Streamer Technology

The secret to high performance air purification is Daikin’s Streamer technology. This innovative technology features a high-power plasma discharge that generates high-speed electrons to decompose harmful substances. This powerful oxidative decomposition process continuously removes odours, bacteria and indoor air pollutants, such as formaldehyde, for superior air purification.

  • Streamer emits high-speed electrons.

  • The electrons collide and combine with nitrogen and oxygen in the air to form four kinds of elements with powerful oxidative decomposition capabilities.

  • These elements break down unwanted substances.

1 3

  • How effective is Daikin Streamer Technology?

  • Eliminates Pollen

    More than 99.6%* in 2 hours

  • Eliminates Mould

    More than 99.9%** in 24 hours

  • Eliminates Allergens

    More than 99.61%* in 24 hours

*Verified at Wakayama Medical University with the following test condition: Irradiated allergens with Streamer & checked decomposition of allergen proteins by either the ELISA method, electrophoresis or electron microscopy.

**Verified at Japan Food Research Laboratories using antibacterial test/mould elimination test (test number: 204041635-001).

A Sensitive, Smart Choice

Approved by the National Asthma Council Australia, Daikin air purifiers and split systems are authorised to display the Sensitive Choice butterfly symbol.

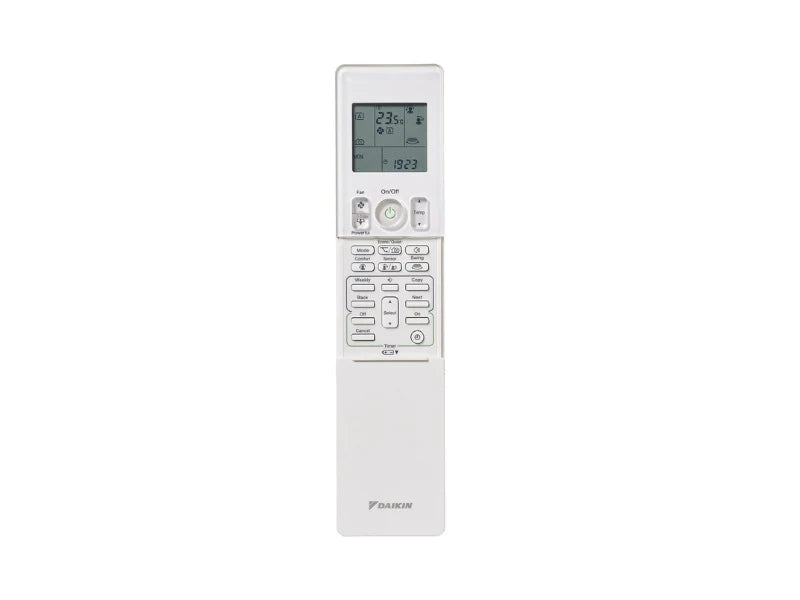

Included Remote

Backlit Wireless Remote Controller (ALIRA X)

  • Operation Timers - Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.
  • Comfort Mode - Airflow is optimised to stream upwards during cooling and downwards during heating.
  • Program Dry Function - Automatic intelligent airflow and temperature control to reduce room humidity.
  • Quiet Mode - Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.
  • Powerful Mode - Gives a boost in cooling or heating for 20 minutes beyond normal capacity.
  • Econo Mode - Power consumption of the system is limited to prevent tripping your circuit breaker.

Included

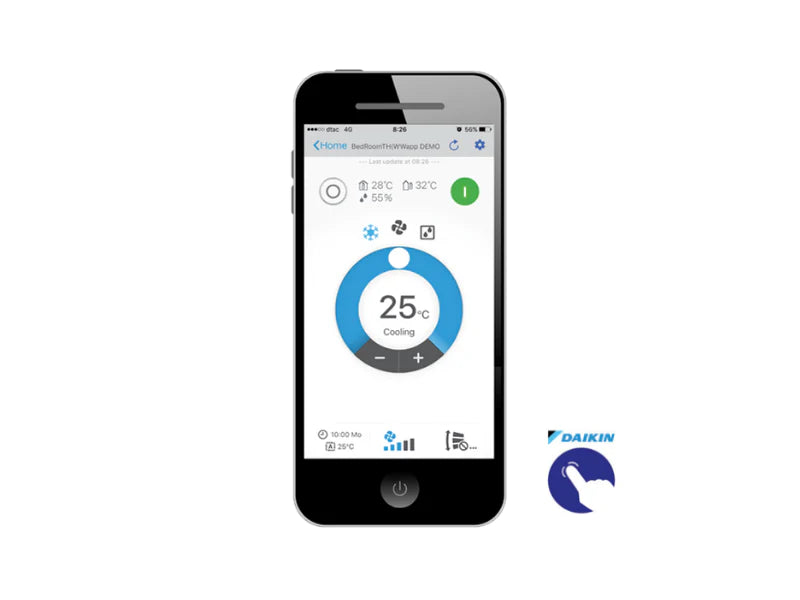

Daikin Mobile Controller

  • Direct Connection - For locations without a Wi-Fi network, the app can wirelessly connect directly to the unit with a LAN adaptor when in range.
  • Wi-Fi Connection - A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.
  • Internet Connection - All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet, and you can monitor and control your system from virtually anywhere.

Alira X Technology

  1. Improved ODM Motor - Improved compact 14 pole DC outer diameter rotor motor encased in rubber vibration dampeners delivers higher torque more efficiently than before while ensuring whisper quiet operations.
  2. Redesigned Dual Louvres - Large dual louvres with aerodynamic end vanes help reduce turbulence for draught free comfort with longer throw distances of up to 10m (50-71 Class).
  3. Humidity Sensor - Monitors humidity to accurately control supply air temperature for comfortable and effective dehumidification of your room during Program Dry Function operation.
  4. Streamer Technology - Discharges high speed electrons generating powerful oxidative decomposition that continuously removes odours, bacteria and indoor air pollutants such as formaldehyde.

A Sensitive, Smart Choice

Approved by the National Asthma Council Australia, Daikin air purifiers and split systems are authorised to display the Sensitive Choice butterfly symbol.

Product Specifications

INDOOR UNIT FTXM20WVMA
OUTDOOR UNIT RXM20WVMA
Rated Capacity Cool (kW) 2.2
Heat (kW) 2.7
Capacity Range Cool (kW) 1.1 - 2.8
Heat (kW) 1.1 - 4.4
Indoor Airflow Rate (Hi) Cool (L/s) 228
Heat (L/s) 223
Indoor Fan Speeds   5 steps, quiet and automatic
Star Rating (Hot/Avg/Cold)
ZERL (Residential)		 Cool 3.5 / 3.5 / 2 Stars
Heat 6 / 5.5 / 5.5 Stars
Front Panel Colour   White
Power Supply   1 Phase, 220-240 V, 50 Hz
Power Input (Rated) Cool (kW) 0.42
Heat (kW) 0.50
E.E.R./C.O.P. Cool/Heat 5.30 / 5.40
TCSPF (Residential) Hot / Avg / Cold 7.87 / 7.15 / 7.39
HSPF (Residential) Hot / Avg / Cold 5.34 / 5.13 / 4.76
A.E.E.R./C.O.P. Cool/Heat 5.25 / 5.36
Dimensions (HxWxD) Indoor (mm) 299 x 920 x 275
Outdoor (mm) 550 x 675 x 284
Weight Indoor (kg) 13
Outdoor (kg) 28
Compressor Type   Hermetically sealed swing type
Refrigerant Type   R32
Max Pipe Length (m) 20
Max Level Difference (m) 15
Pipe Sizes Liquid (mm) 6.4
Gas (mm) 9.5
Outdoor Operating Range (outdoor temp) Cool (°CDB) -10 to 46
Heat (°CWB) -15 to 18
Indoor Sound Level (H/SL) Cool (dBA) 39 / 19
Heat (dBA) 47 / 44
Outdoor Sound Level (H/L) Cool (dBA) 46 / 43
Heat (dBA) 47 / 44
Outdoor EPA Sound Power Level Cool (dBA) 58
 Heat (dBA) 59
